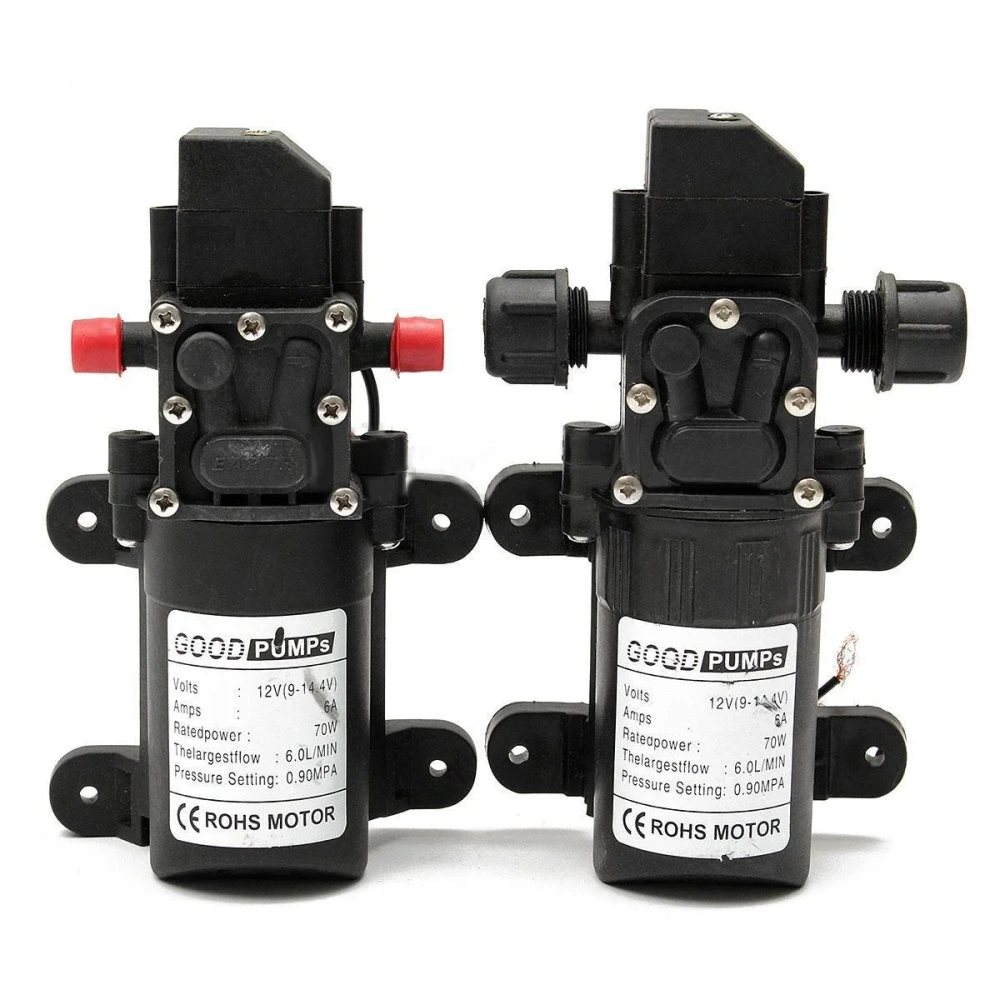

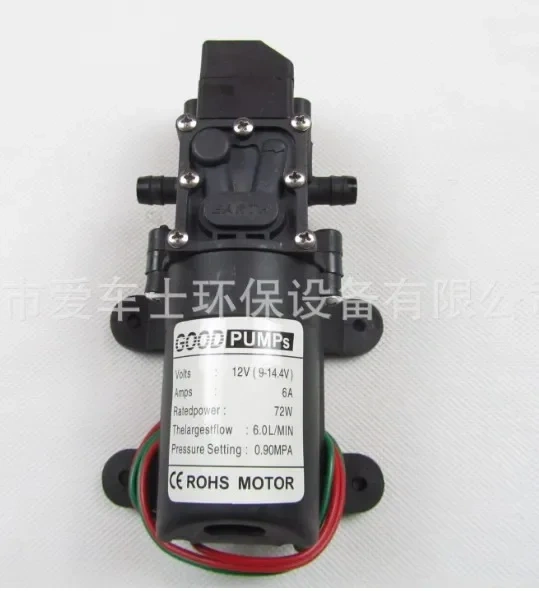

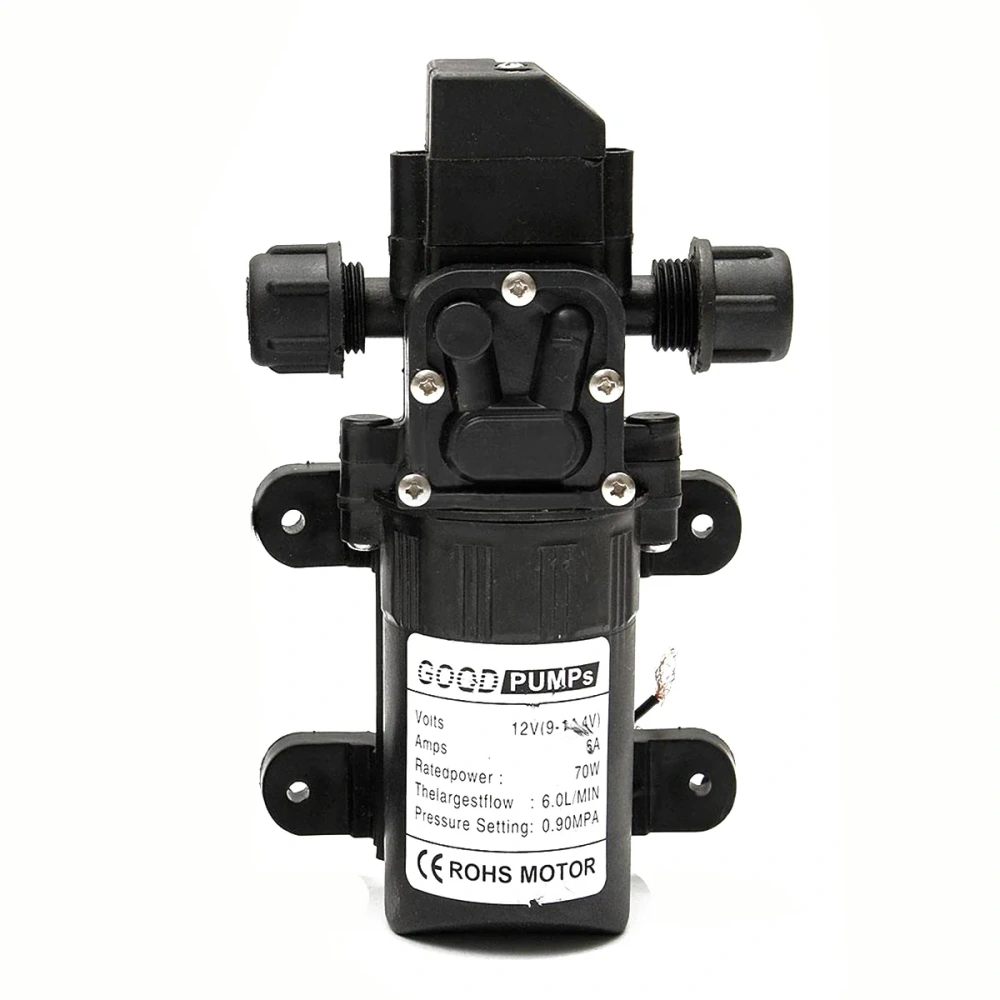

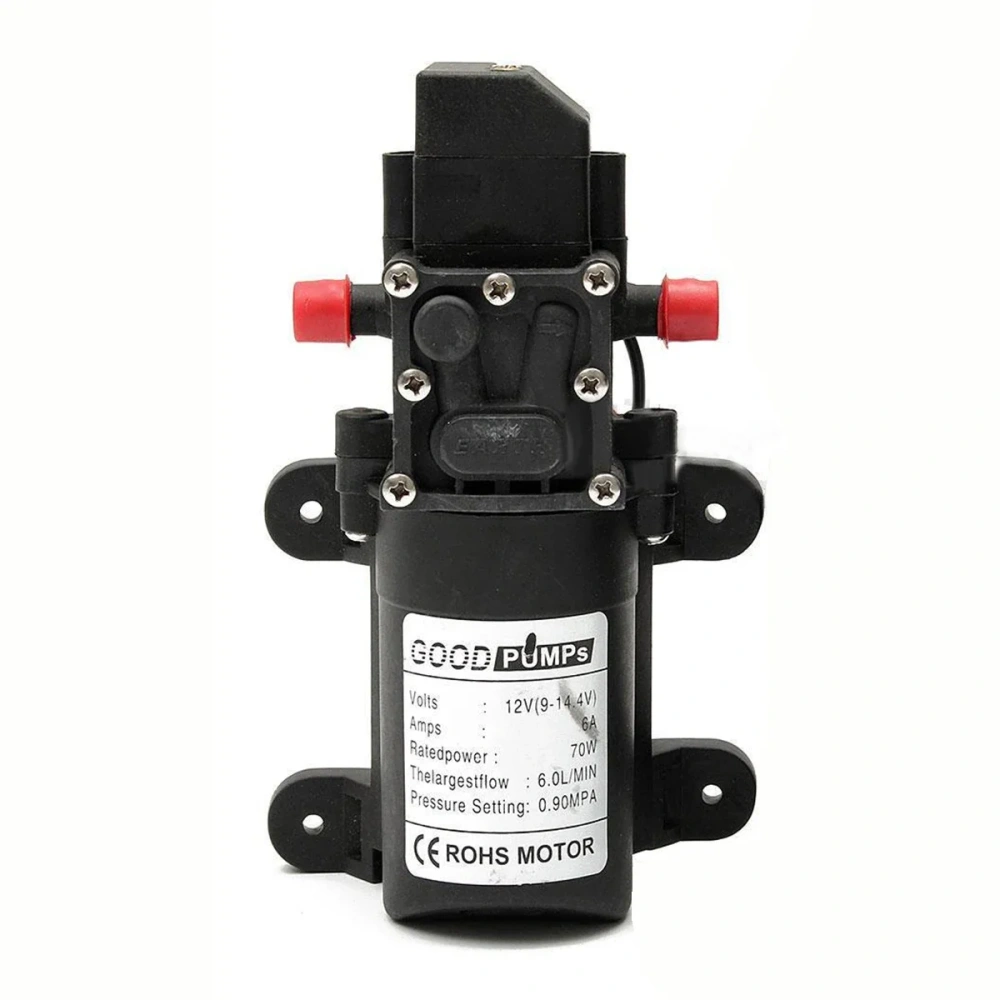

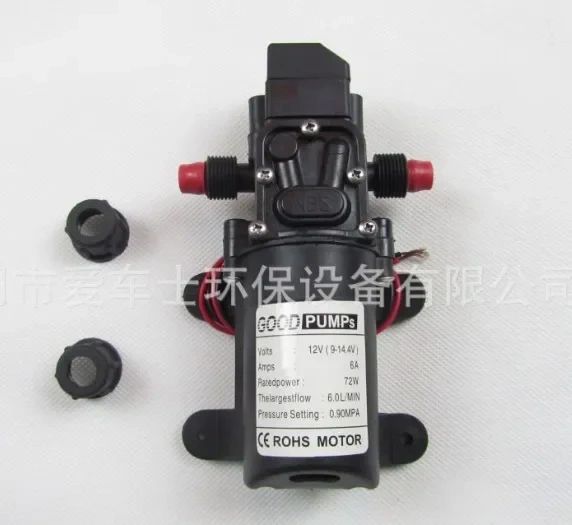

Small Safe Self Priming Pump DC12V 70W 130PSI 6L/Min High Stable Pressure Diaphragm Water Pump 2 styles

Specification:

• Brand new

• Type: screw thread/straight

• Inlet and outlet size: approx.10mm

• Size: approx.165*100*62mm

• Volts: 12V/24V DC, 220V AC

• Amps: 6A

• Rateapower: 70W

• Pressure: 0.90MPA (MAX 130PSI)

• Thelargestflow: 6L/MIN

• Medium temperature: 0 -100 degree Celsius

• Working medium: no oil, no strong corrosive, non-acid and alkali, without solid particles of liquid

• The use of media: water or solvent PH value 5--8, oil

• Pressure protection: pressure switch power protection

• Pressure switch type features: when the water turned off, it will automatically cut off power, the motor is stopped. After the water turned on, will automatically power on, motor running.

• The work: intermittent service (continuous working at different working pressures at different times)

• Service life: more than 500-1000 hours of continuous work

Feature:

• Maximum pressure 130PSI (9.0 kg) of pressure can be adjusted from 75PSI (5 Gongjin) -130PSI (9.0 Kg) according to different needs.

• When the water pressure is too high, pump will protect themselves and normal work, water pipes will not burst.

• Diaphragm pump combines the advantages of self-priming pump and chemical pump.

• Using a variety of imported corrosion-resistant materials, self-priming, thermal protection, smooth operation, long-time continuous idling, long-time continuous load operation.

• Rubber bracket can absorb vibration from the pump when working.

• Installed in a dry, well-ventilated location; pumps can not work in water.

• Totally sealed, high stable pressure.

• Small in size, light in weight.

• Safe and stable.

• Easy to install.

• Durable in use.

Package included:

• 1 x Diaphragm Water Pump

Note:

• Please allow 1-5mm errors due to manual measurement.

• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
