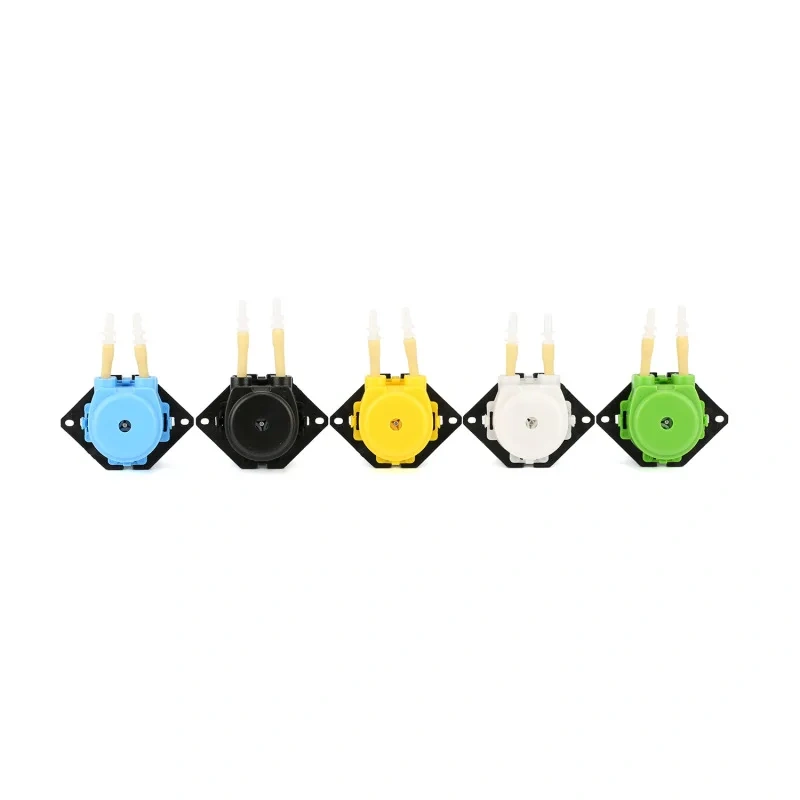

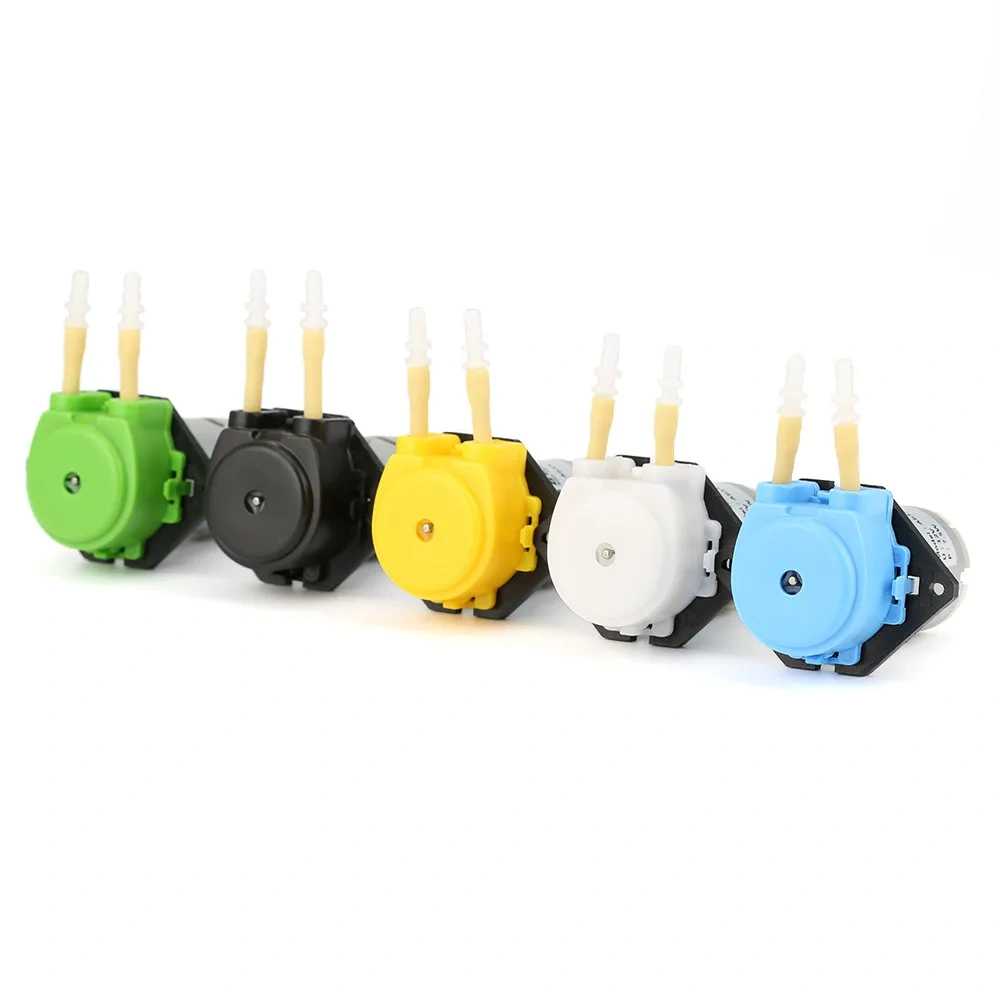

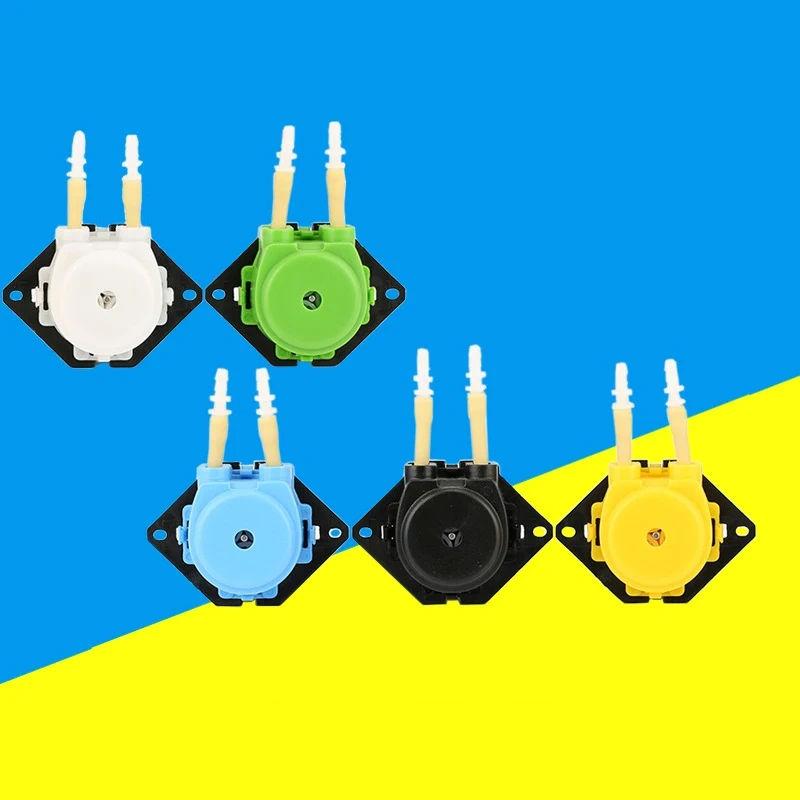

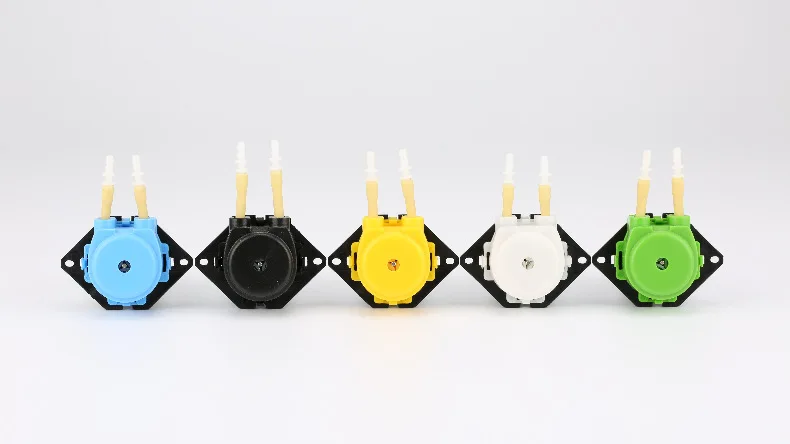

6V/12V/24V colour dosing pump peristaltic pump with motor and tube for Aquarium Lab Analytical water tubing hose pump free shipping
Technical Specifications:
1 Applicable power: DC 6V/12V/24V
2 Working environment: temperature 0-40 ° C, relative humidity <80%
3 Flow direction:The direction of flow of the peristaltic pump depends on the connection way of positive and negative
4 Flow range :0-200ml / min (without speed control circuit)
5 Motor size: Diameter 27.6 *Height 37.9 (mm)
6 Pump head dimensions: Diameter 31.7 * Height 20.1 (mm)
7 Standard pump tube: inner diameter 2.5 * outside diameter 4.5 (mm) silicone tube
(Pump tube can be changed according to required flow rate )
8 Product Weight: 85g
9 Hole pitch for set-up: 47mm
10 Pump head design is for easy disassembly,easy cleaning and maintenance
11 24 hours soak test is recommened for pump tube before the use of acid / alkali medium.
Package include:1*peristaltic pump head
直板安装板装配效果正面 直板安装板装配效果侧面

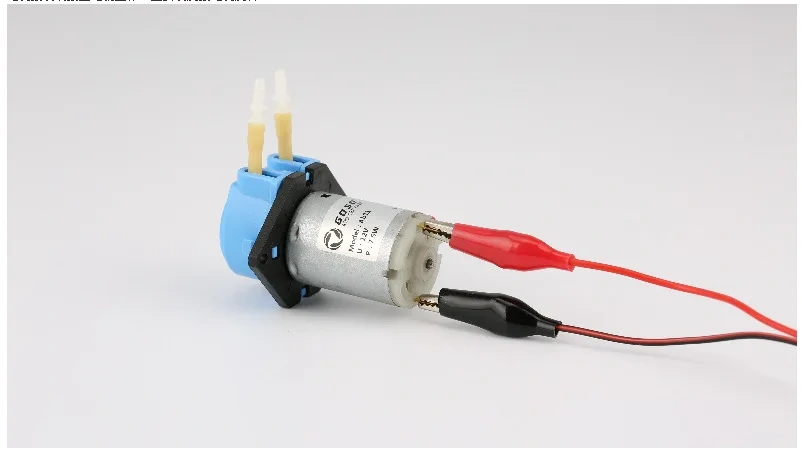

When the motor terminal is connected to power, it works, and the positive and negative lines are reversed to reverse the motor.
