New Universal Mechanical Floor Heating Thermostat AC 230V Electronic Dual Room Warm Temperature Controller Retardant PC

New Universal Mechanical Floor Heating Thermostat AC 230V Electronic Dual Room Warm Temperature Controller Retardant PC

• The manual thermostat is designed for electronic floor heating and other electrical heating elements. It controls the temperature with an NTC sensor placed externally. The thermostat gets the room temperature through its floor sensor, and the heating contact will close when the room temperature rises above the set point, and vice versa. It fits into the standard single switch back box well, and is worldwide suitable.

• -Designed for floor sensor and other electrical heating elements

• -Simple operation, no need to work out how to program

• -Automatic safety power switch, On/off control output for heating device

• -With manual switch and knob for easy operation

• -Can fit into a standard single switch backbox

• -Mini size junction box and worldwide suitable.

• -LED indicator is light when heating is on

• -Full Installation and Operation Instructions Included

• -Power supply : 230V 50HZ

• -Power consumption: 5W

• -Adjusting range: 5 °C ~40 °C

• -Differential per. tem.: ±1 °C

• -Operating temperature: -5 °C~50 °C

• -Degree of protection: IP20

• -Housing material: self-extinguishing PC

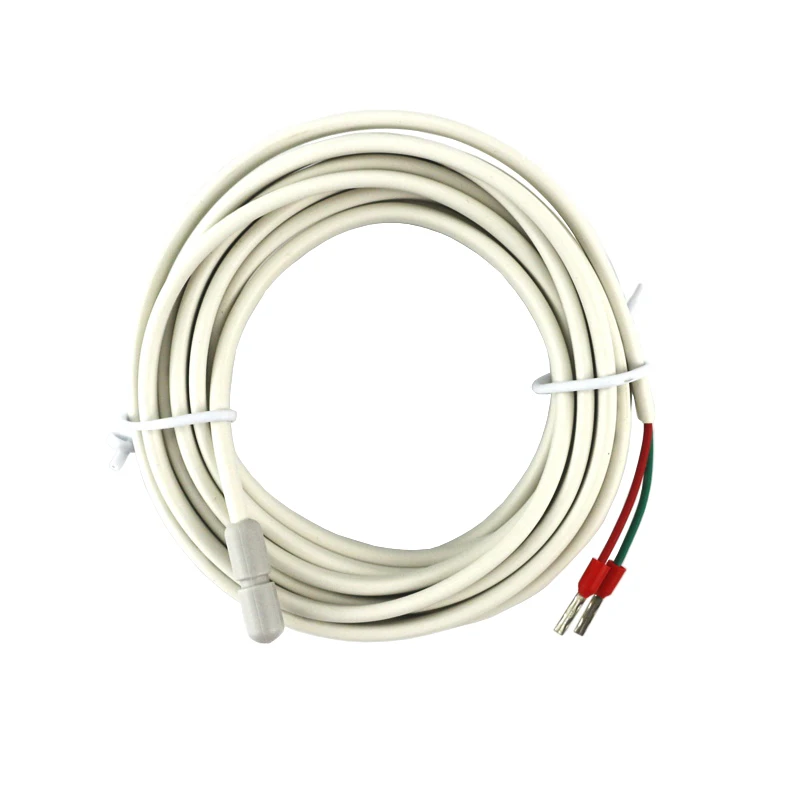

• -Floor sensor : NTC sensor 3m

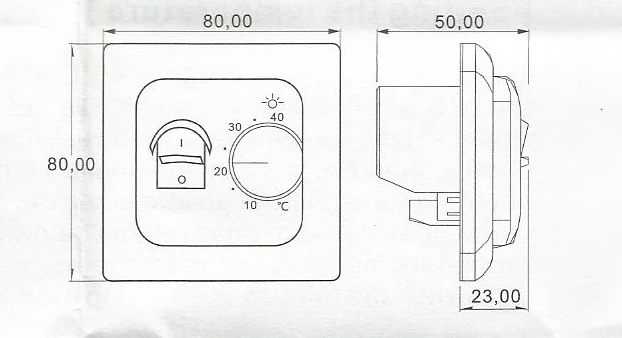

• -Dimension: 80X80X50mm/3.15X1.97inch

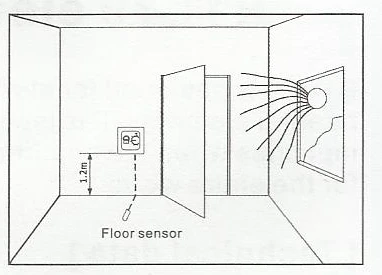

Placing the thermostat



• The thermostat should be mounted on the wall with a free air flowing freely around.

• Note: The mounting location shoul not be influenced by other heat source(e.g. sunlight), air flow through doors & windows or temperature of outer wall.

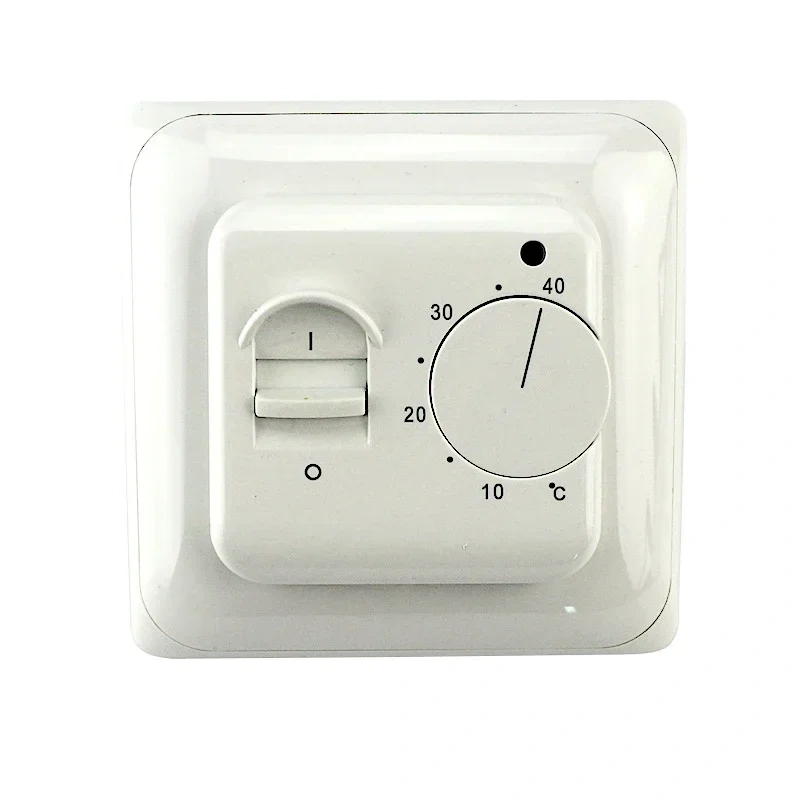

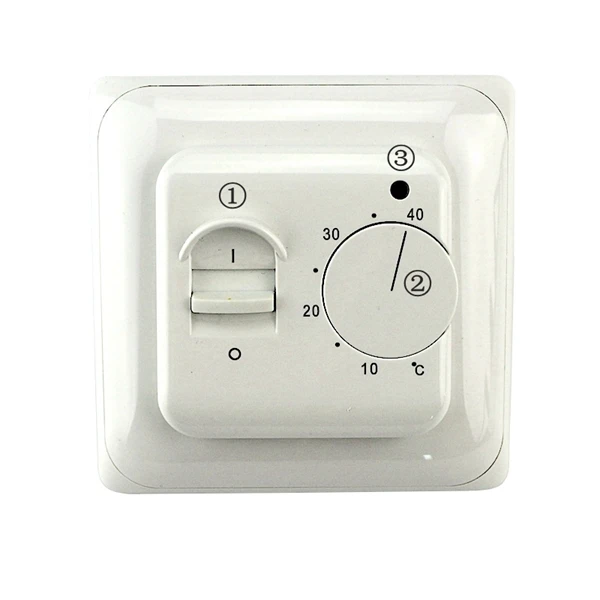

Panel



① I - on O - off

②Temperature Setting: 5-40 °C

③LED light: red on heating

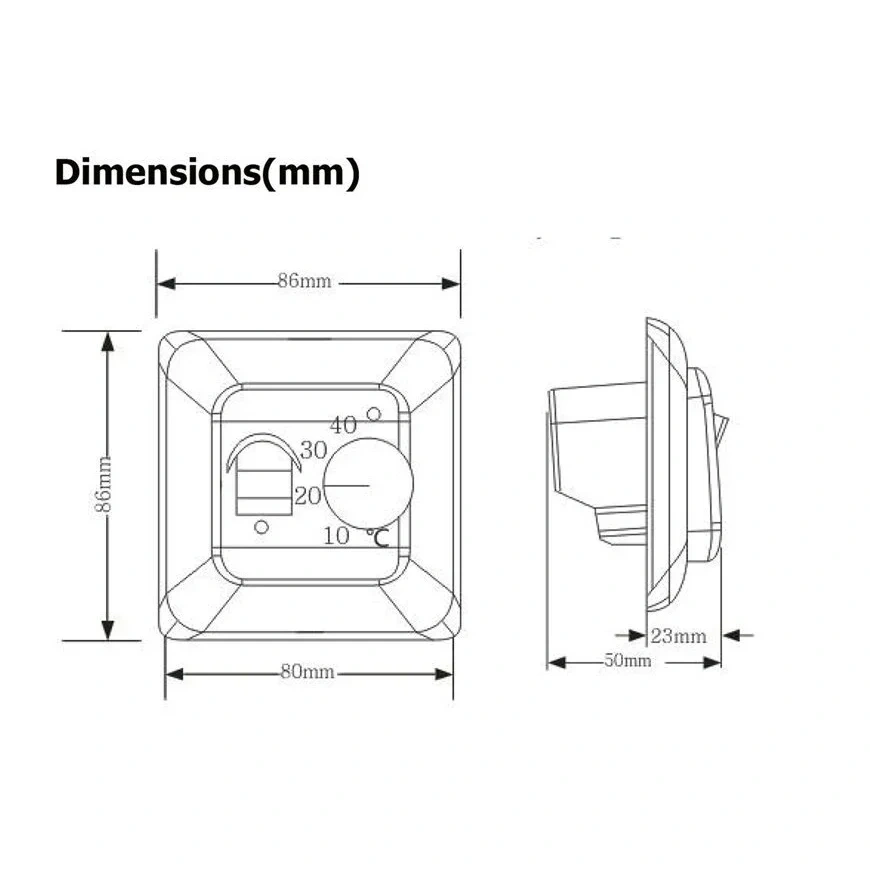

Size

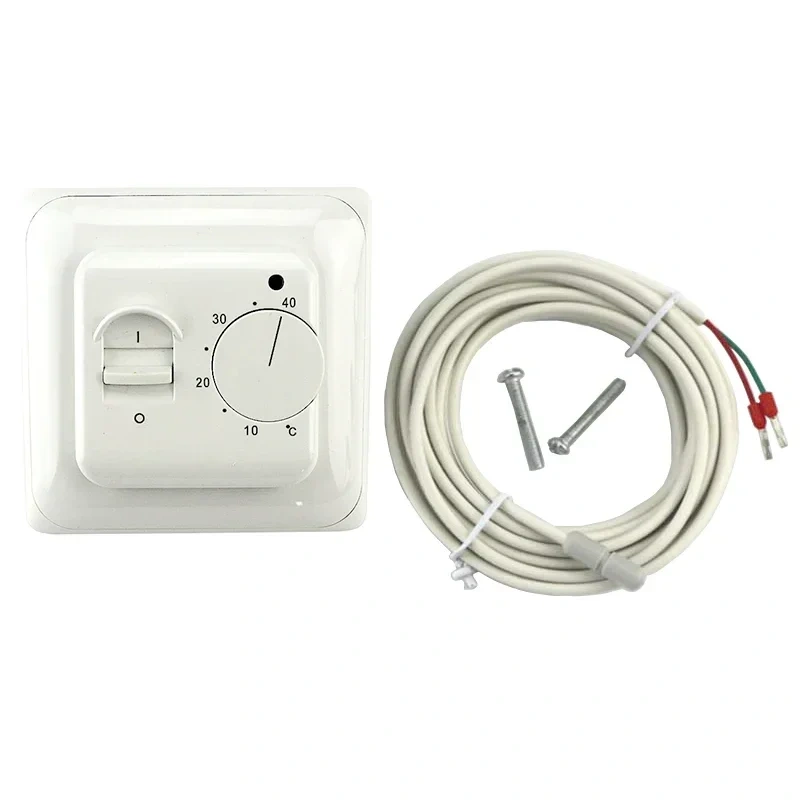

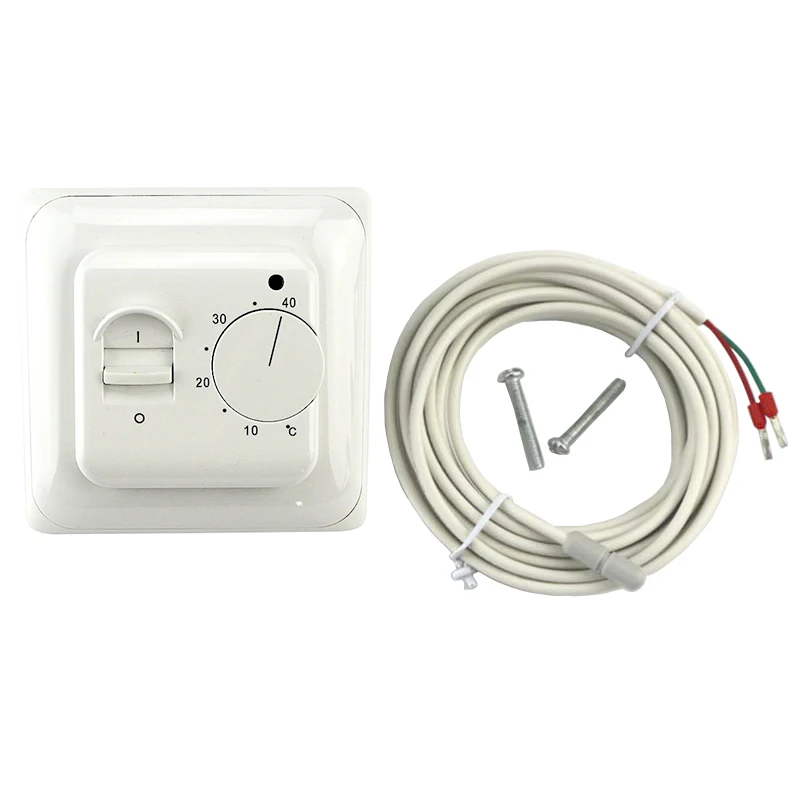

• -1X Manual thermostat

• -1X 3m sensor cable

• -2 X Mounting screws

• -1x English user manual
