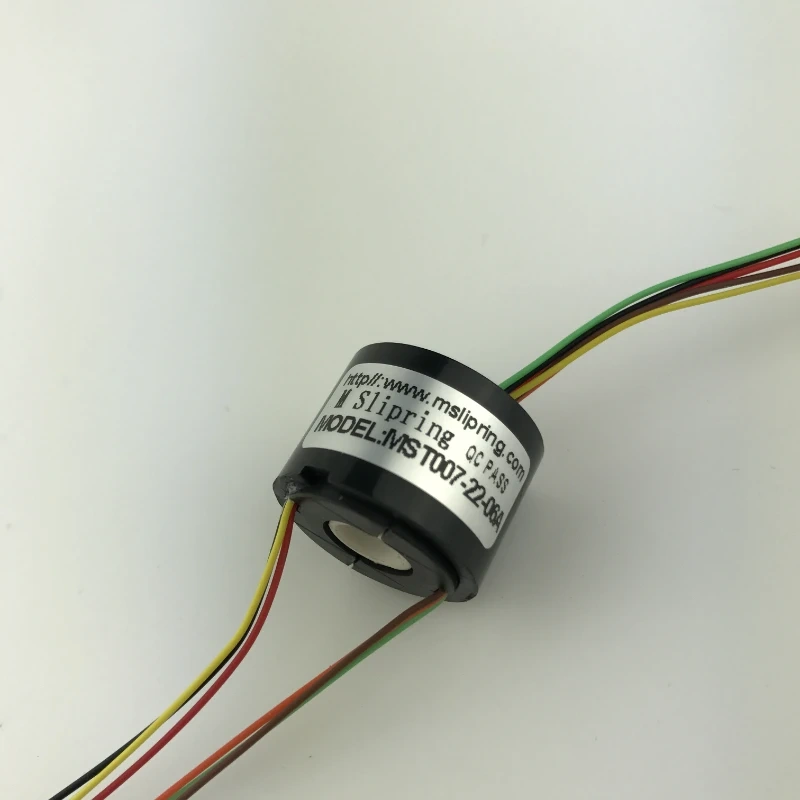

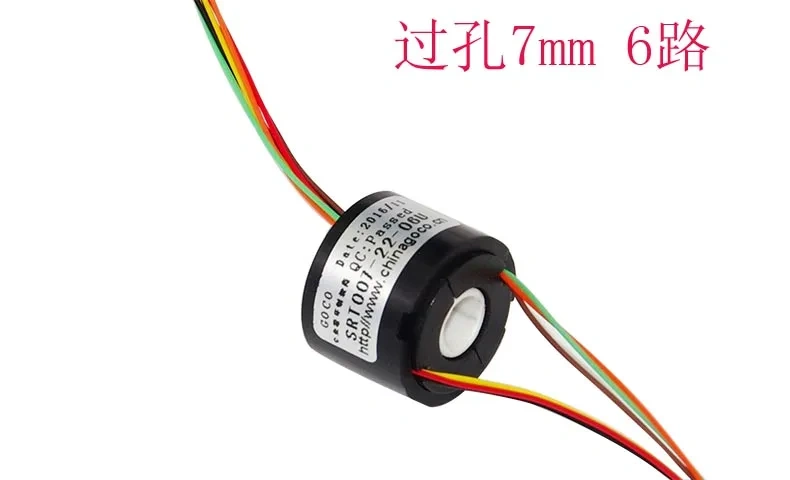

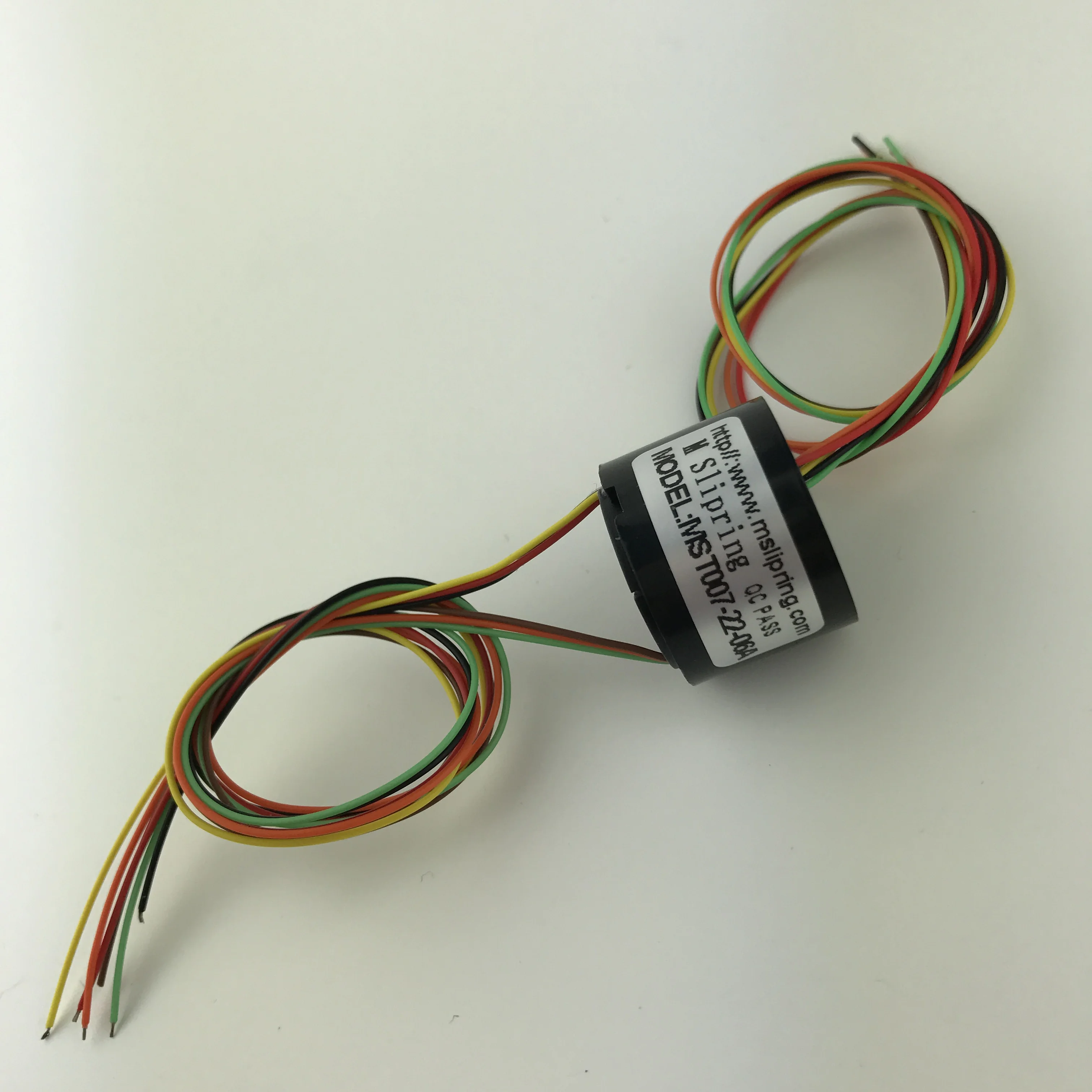

The SRT007-22-0XU is a cap type slip ring, standard diameter 22mm, length 16.8mm, 6 * 4 1.5A (signal)

The military uses high level standard surface treatment of domestic leading technology, the internal structure is more precise and compact

The Au - AU contacts, to ensure the stability and service life, mainly for civil and commercial fields

It has the advantages of compact structure, smooth operation, low torque, compatible data bus protocol

The use of the stator and the rotor wire color line corresponding, make simple circuit connection

The conductive ring with 90 degree angle V slot design, with smooth rotation, low torque and low electrical noise

*Product integral structure, advanced fiber brush technology, support power, signal mixed transmission

Some application areas

外形图

SRT007-22-04U型号

SRT007-22-06U型号

technical parameter

Be careful:

1) product life and speed and temperature, humidity and other parameters are closely related
2) wire specifications: 1.5A/ - > 5A - > AWG30 signal, AWG22, 10A, Awg17, 15A, Awg14, color coded identification.
3 electrical noise and working speed, current, voltage precision

Wire color code table
