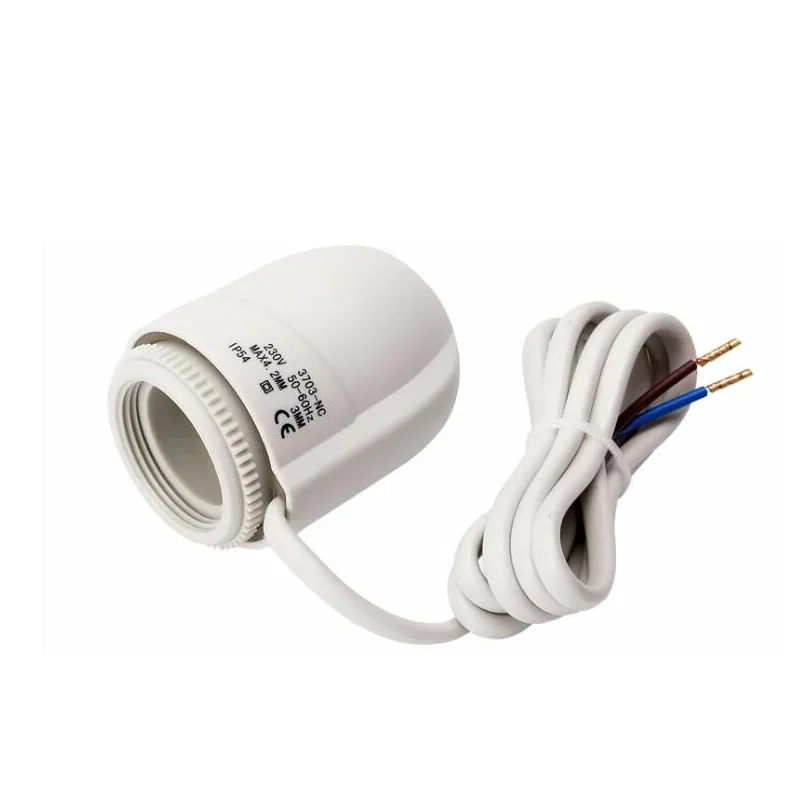

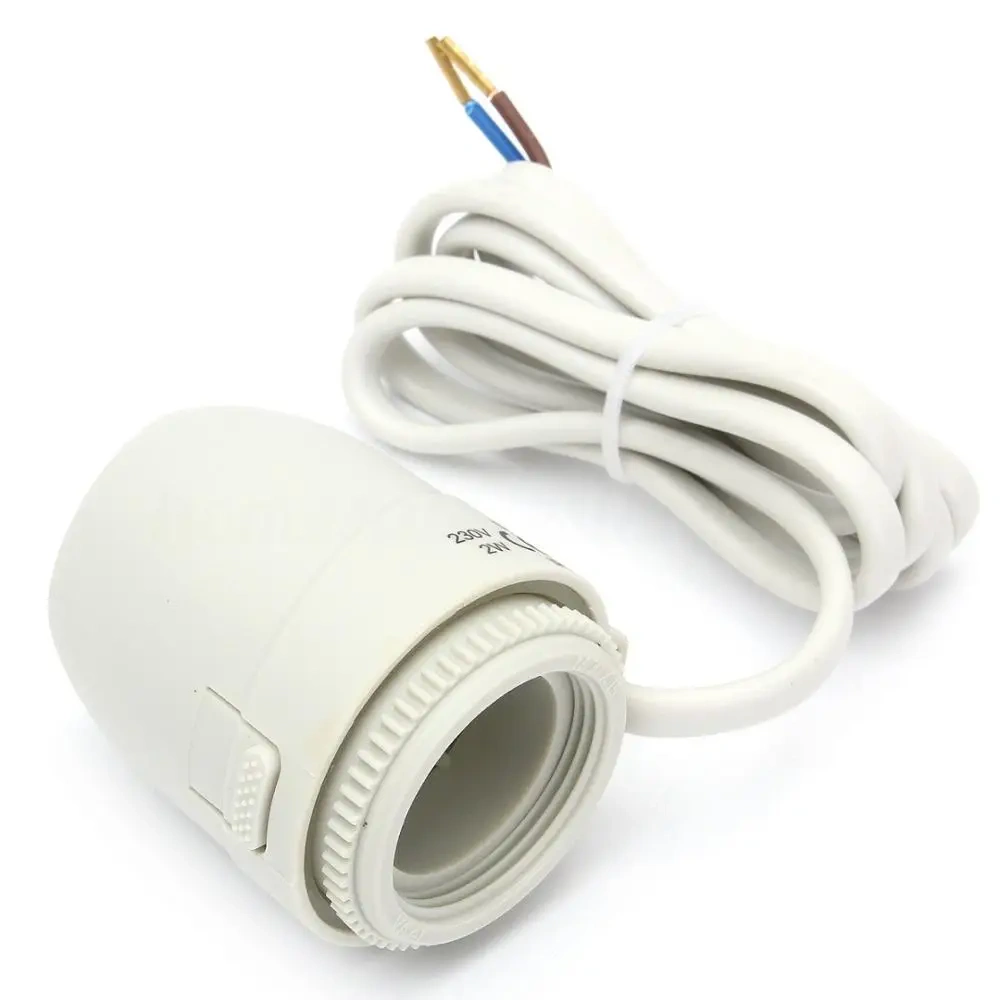

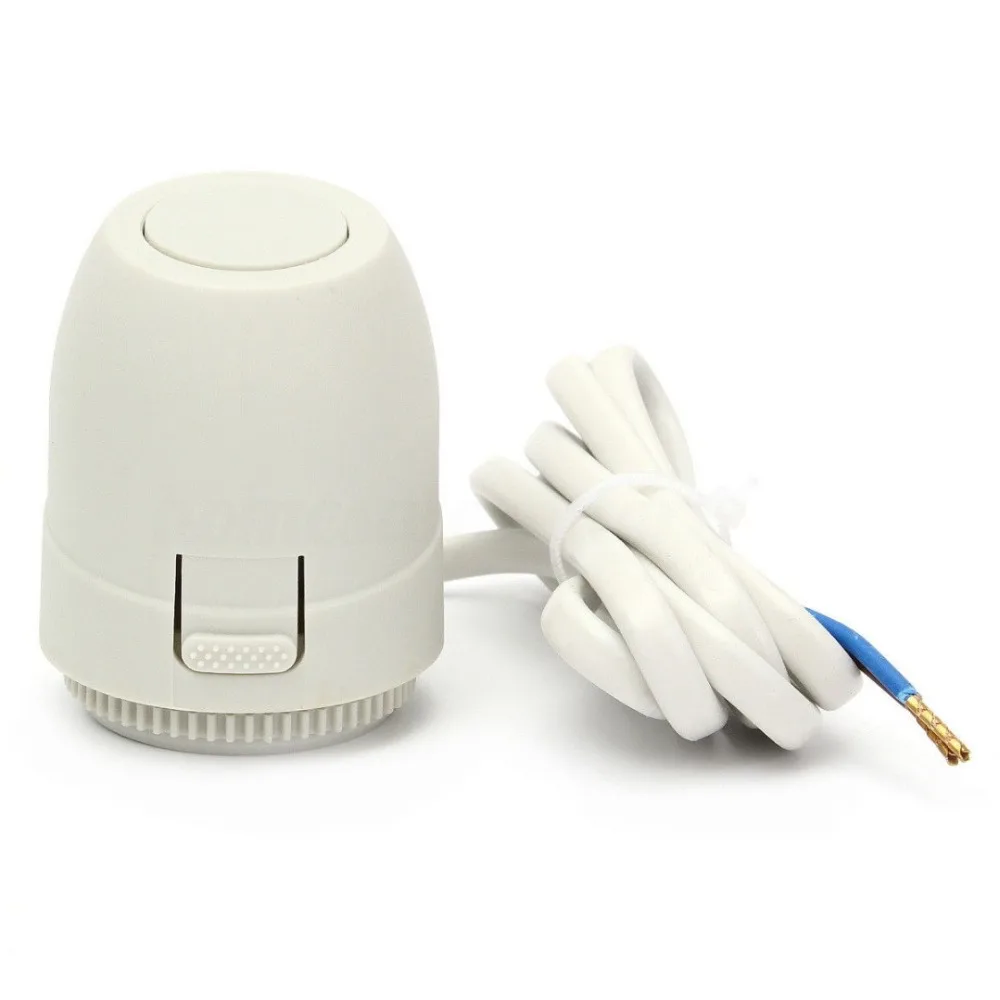

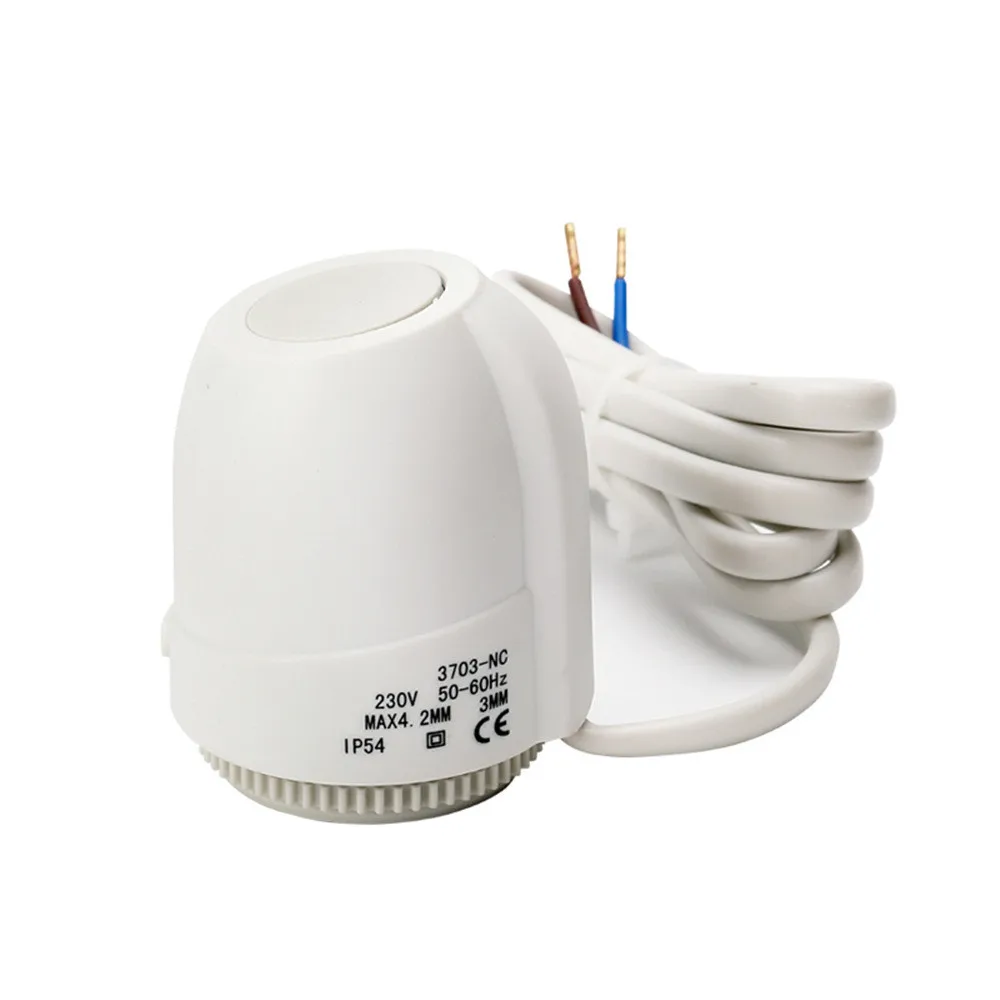

Floor Heating Valve NC AC 230/220V Electric Thermal Actuator Manifold for Underfloor Heating Thermostat

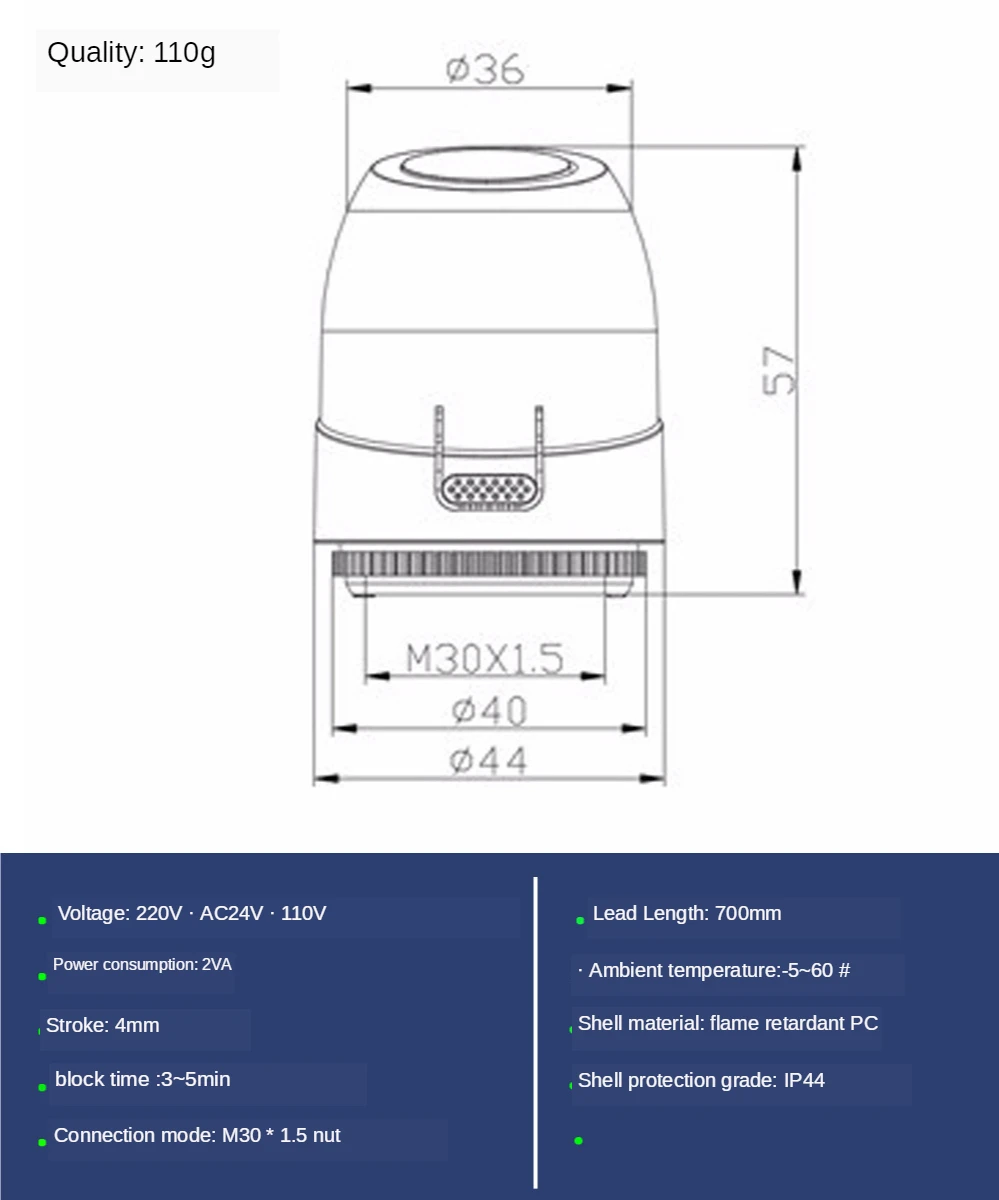

Specification:

• Material: ABS + PC Alloy

• Color: As the picture shown

• Size: As the picture shown

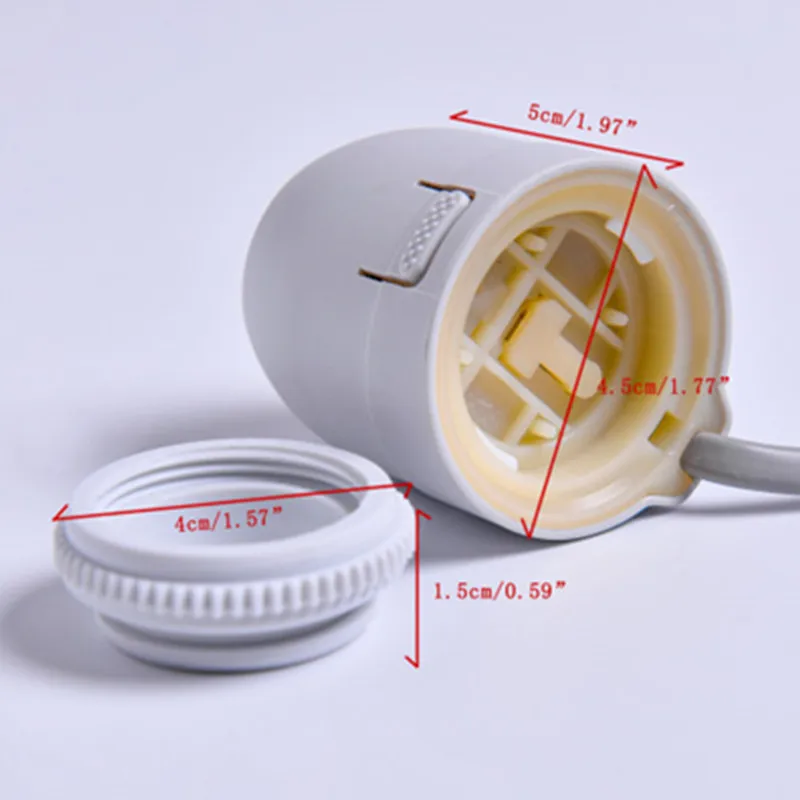

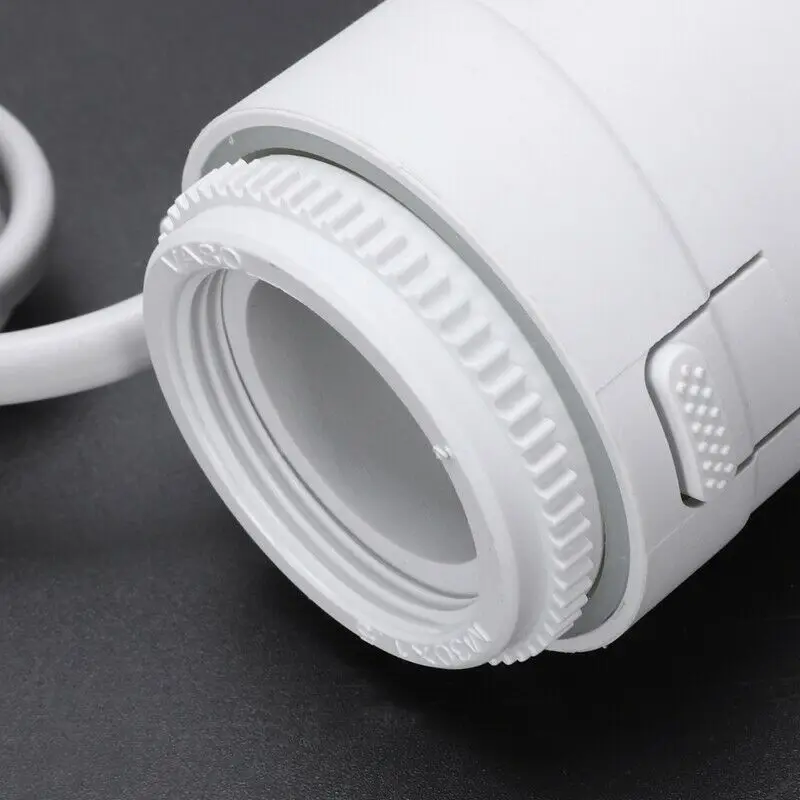

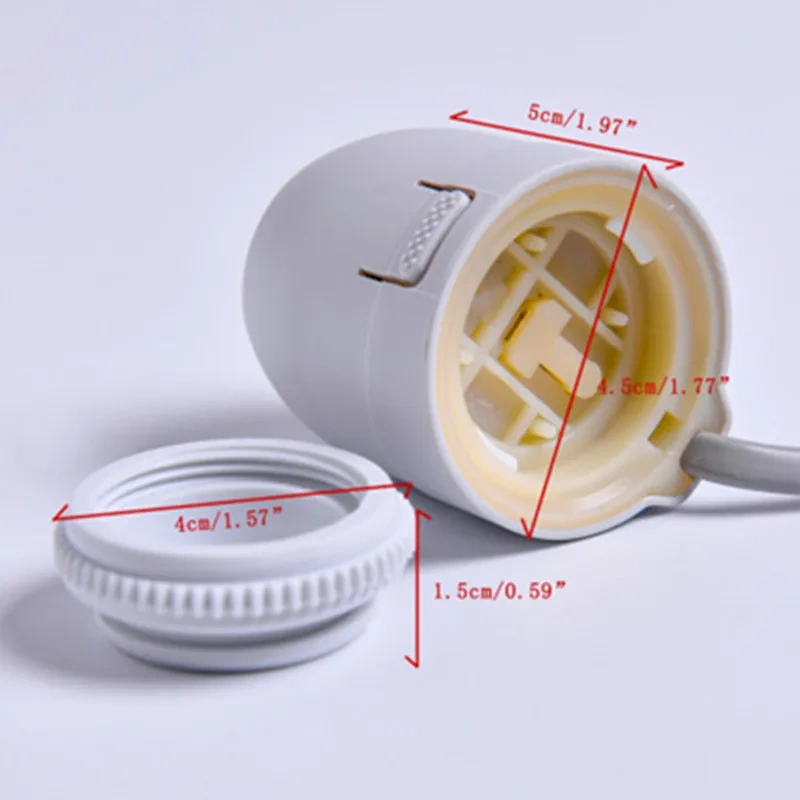

• Cap Nut: Approx. 3cm/1.18''

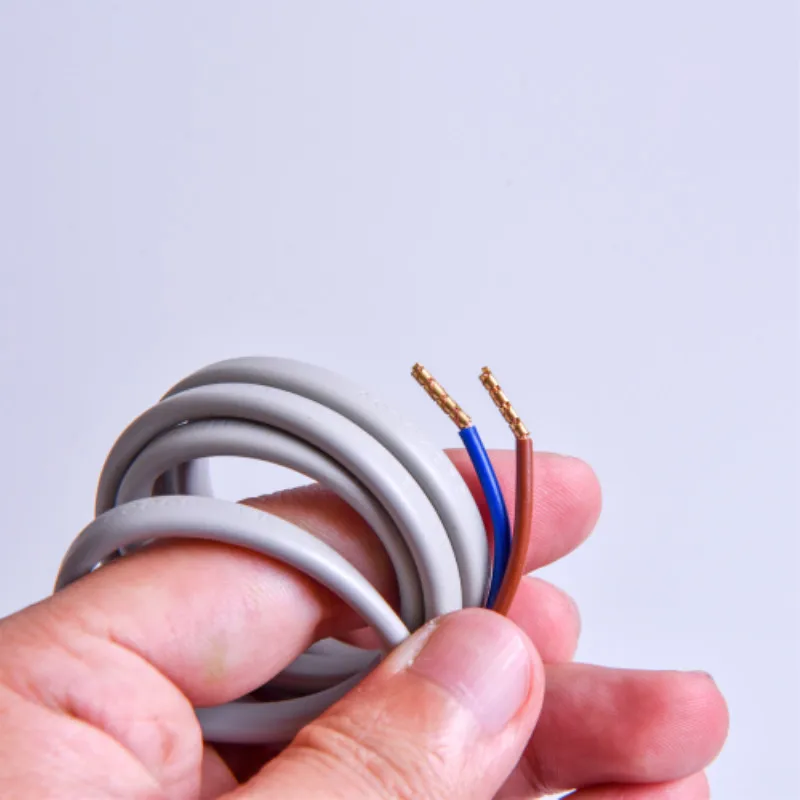

• Length of Cable: Approx. 90cm/35.43''

• Stroke: Approx. 3.5mm

• Voltage: AC 230V

• Power Consumption: 2W

• Running Time: 3-5min

• Protective Housing: IP54

• Ambient Temperature: -25℃ ~ 60℃

• Suitable for Underfloor Heating Thermostat.

• Anti-flammable PC housing, anti-flammable PA66 as internal components.

• Mounting position:vertical position to 85° decline.

Package Included:

• 1 Pc * Electric Thermal Actuator

Note:

• Please allow minor deviation due to manual measurement.

• Due to the difference between different monitors, the picture may not reflect the actual color of the item.
