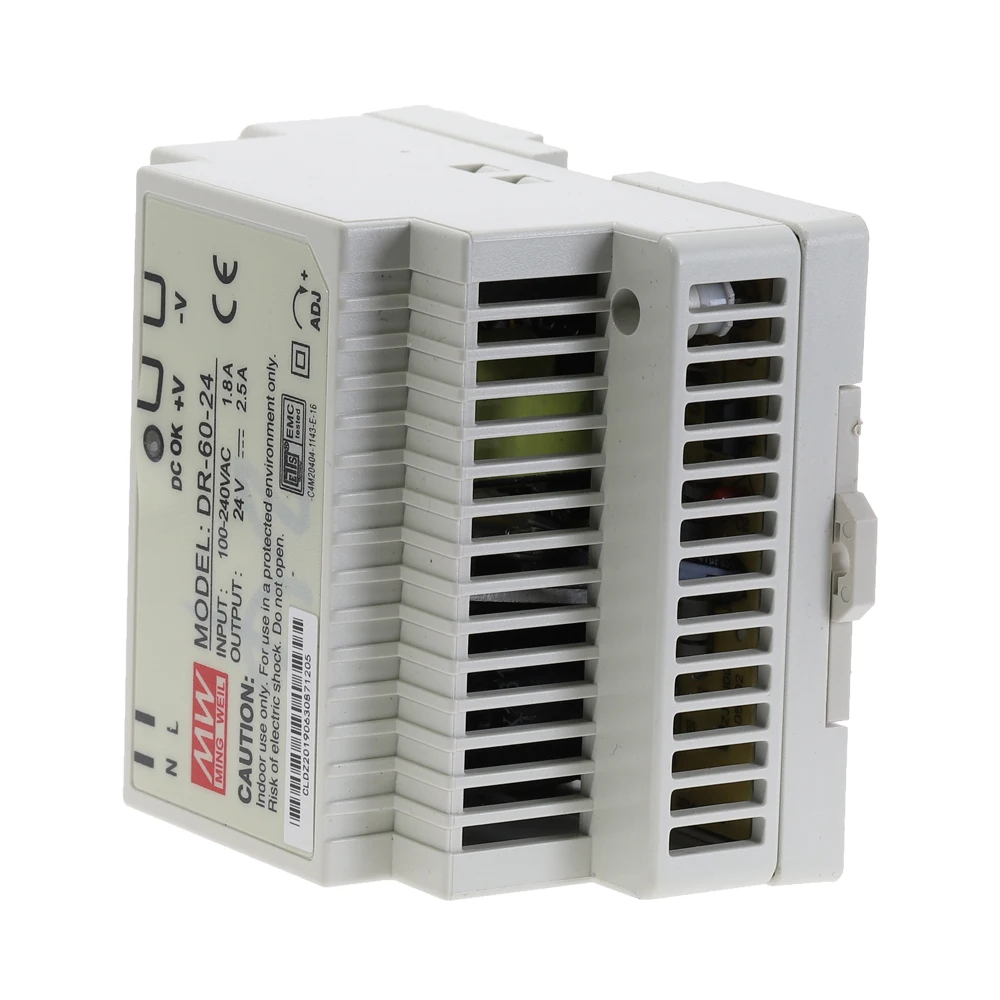

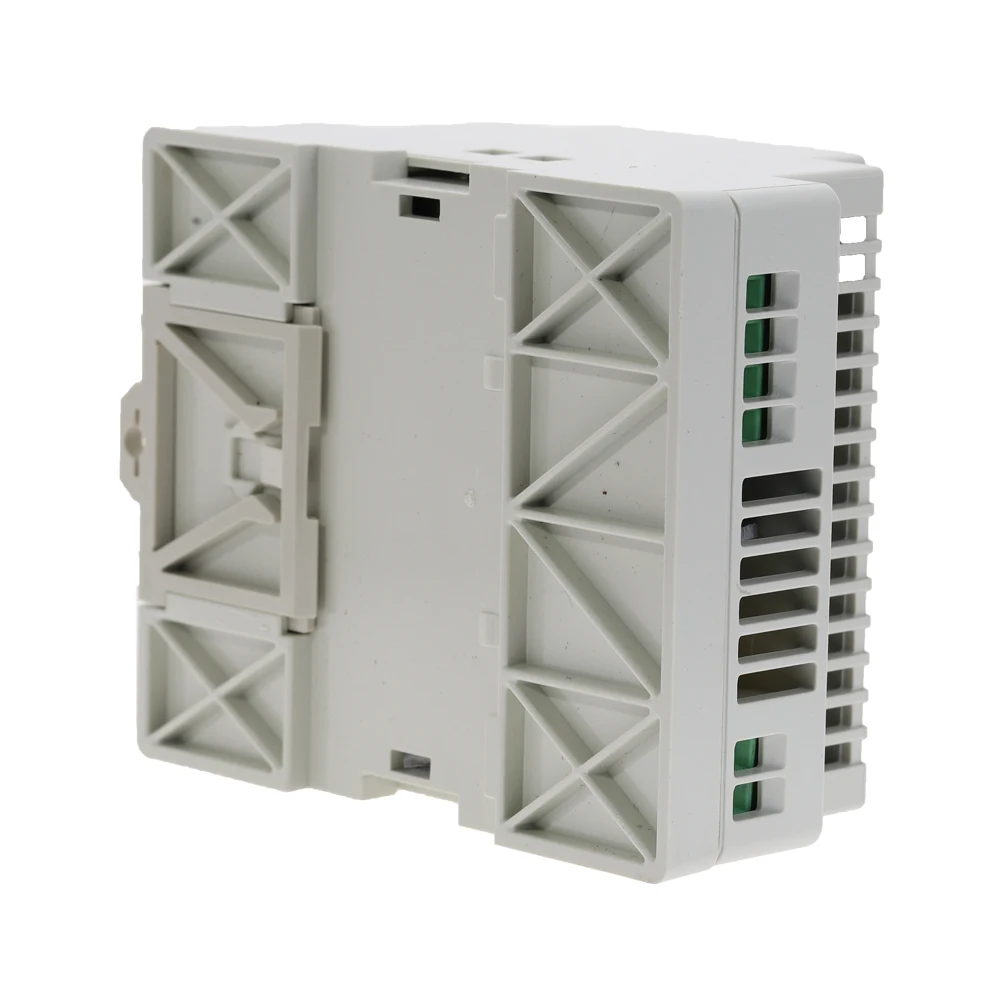

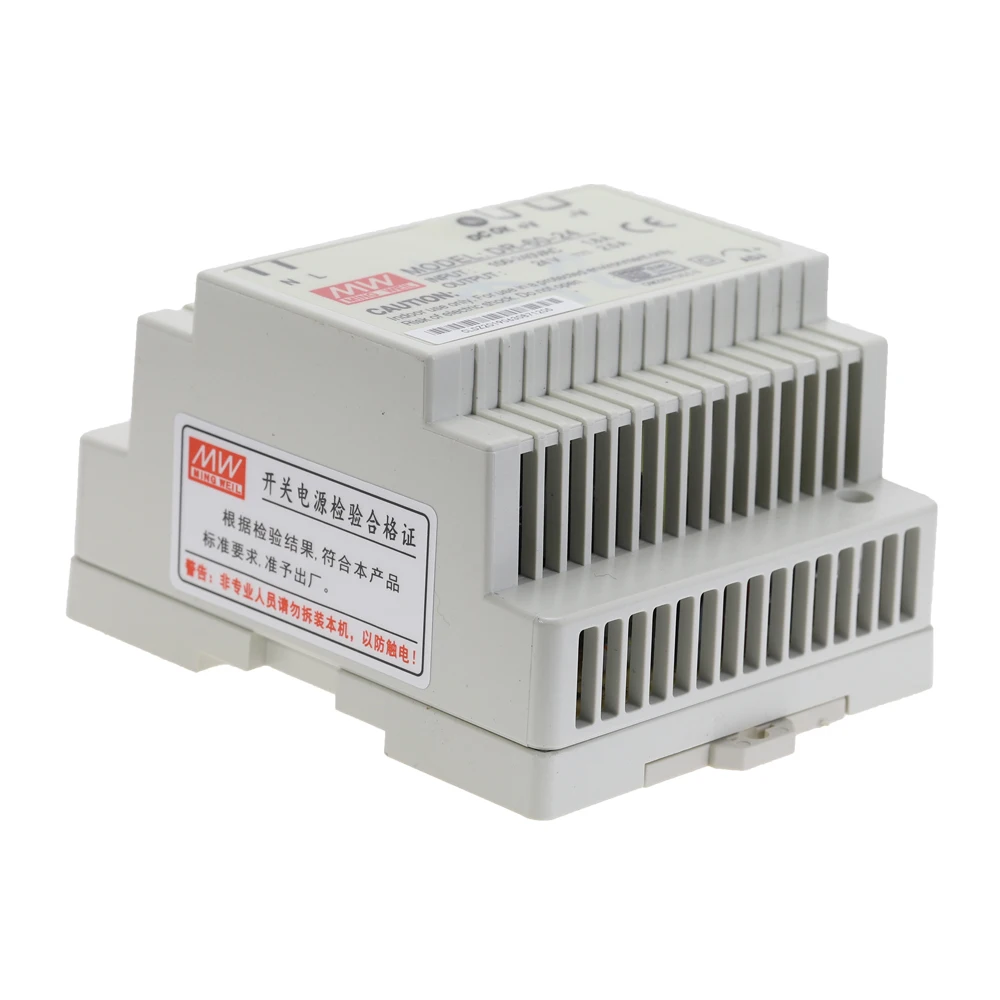

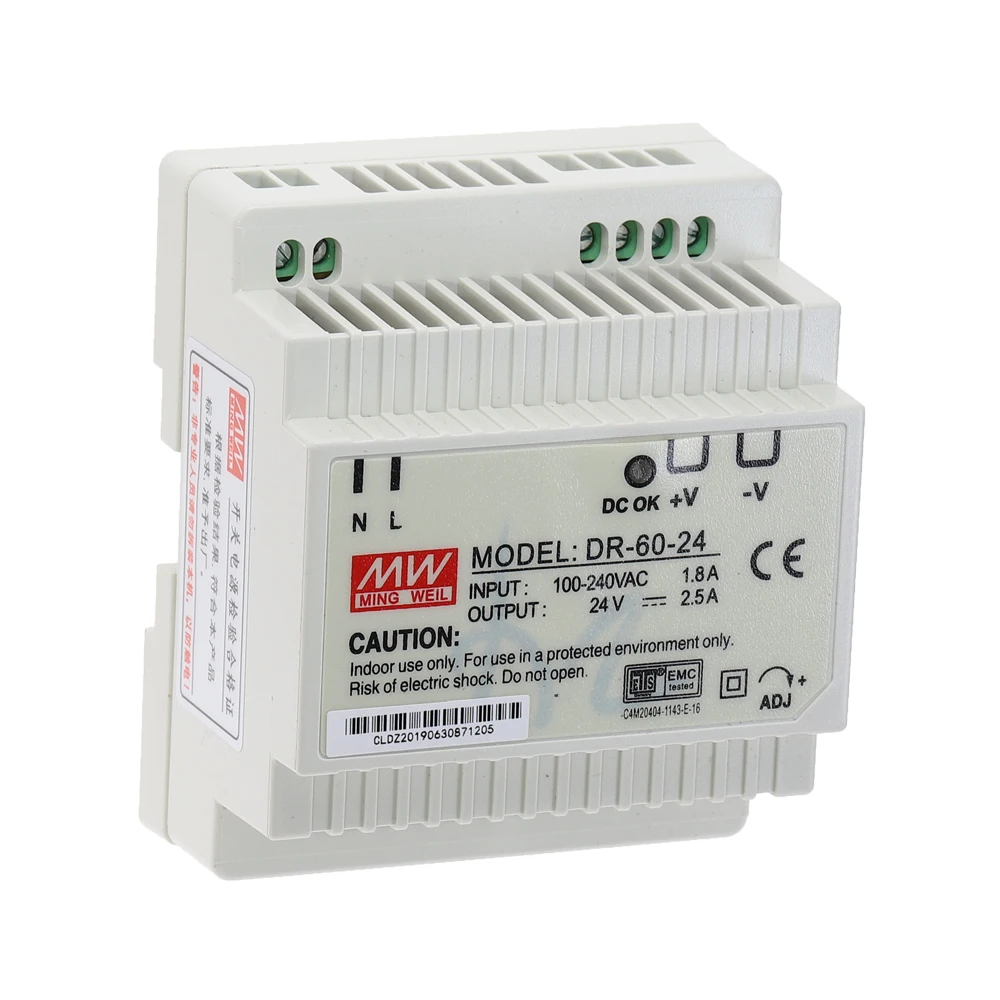

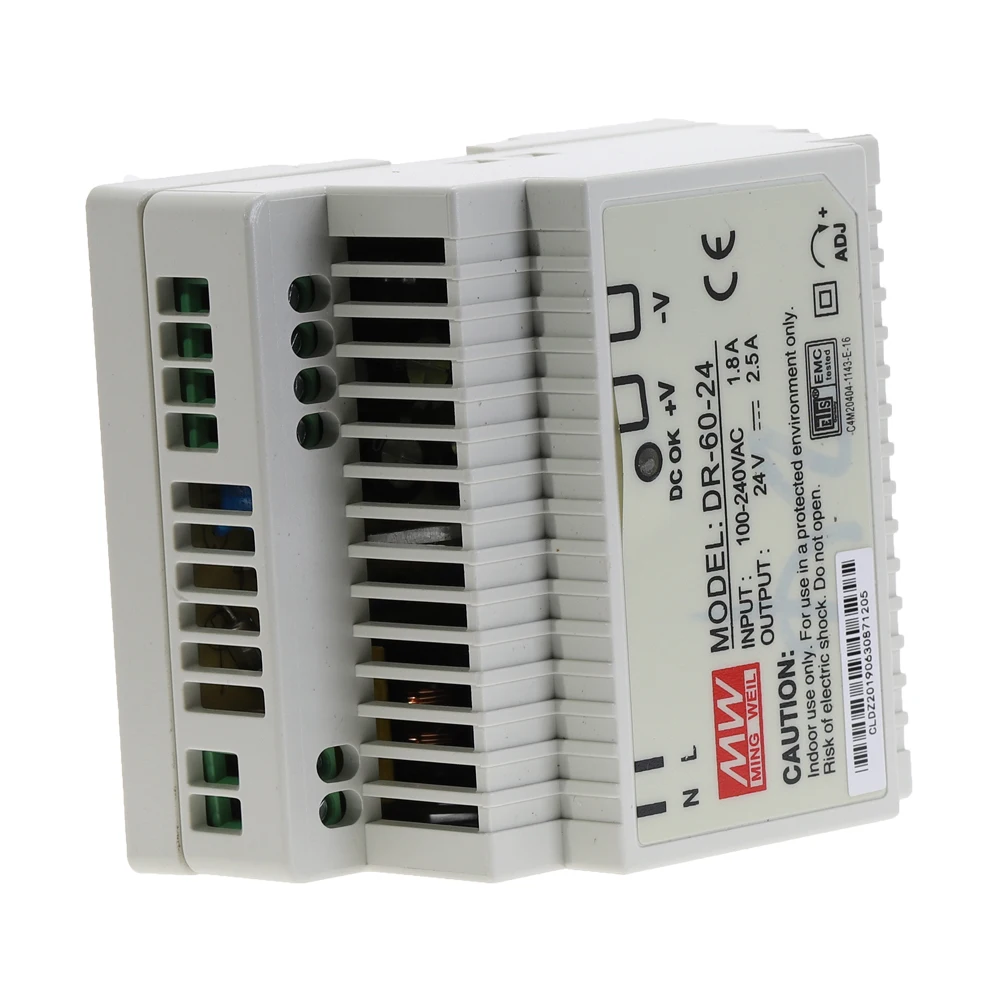

DR-60 60W Single Output 5V 12V 15V 24V Din Rail Switching Power Supply DR-60-5 DR-60-12 DR-60-15 DR-60-24 Power converter













DR-60 60W Single Output 5V 12V 24V Din Rail Switching Power Supply DR-60-5 DR-60-12 DR-60-24 Power converter


Name: DR-60 Switching Power Supply Single output Power:60W Input voltage:85~264VAC 120~370VDC Output: 5VDC 6.5A,12VDC 4.5A,15VDC 4A,24VDC 2.5A DIN RAIL type , easy to installation

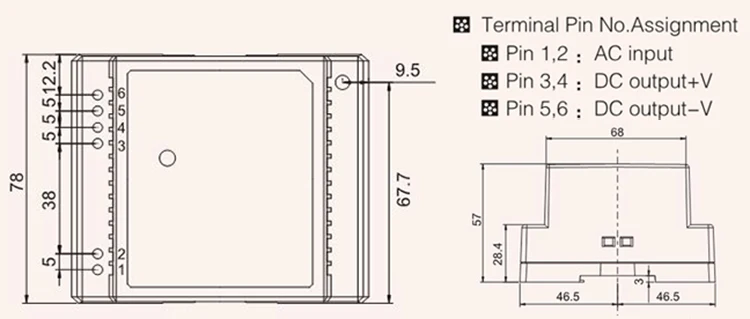

ModelDR-60-5DR-60-12DR-60-15DR-60-24DC voltage5V12V15V24VoutputCurrent range0~6.5A0~4.5A0~4A0~2.5ARated power32.5W54W60W60WRipple&noise80mvp-p120mvp-p12mvp-p150mvp-pDCvoltage ADJ.range±10%±10%±10%±10%Voltage range85~264VAC,120~370VDC 47-63HzEfficiency76%82%83%84%Inrush currentCold start current 18A/115VAC, 36A/230VACOver load105%~150% cut off the output,automatic recoveryOver voltage115%-135% shut down O/P voltage, re-power on to recoverenvironmentWorking temperature-10°C~+50°CsafetyWithstand voltageI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minuteIsolated resistanceI/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDCothersDimension78*93*56mm (L*W*H)Weight0.3kg Dimension
