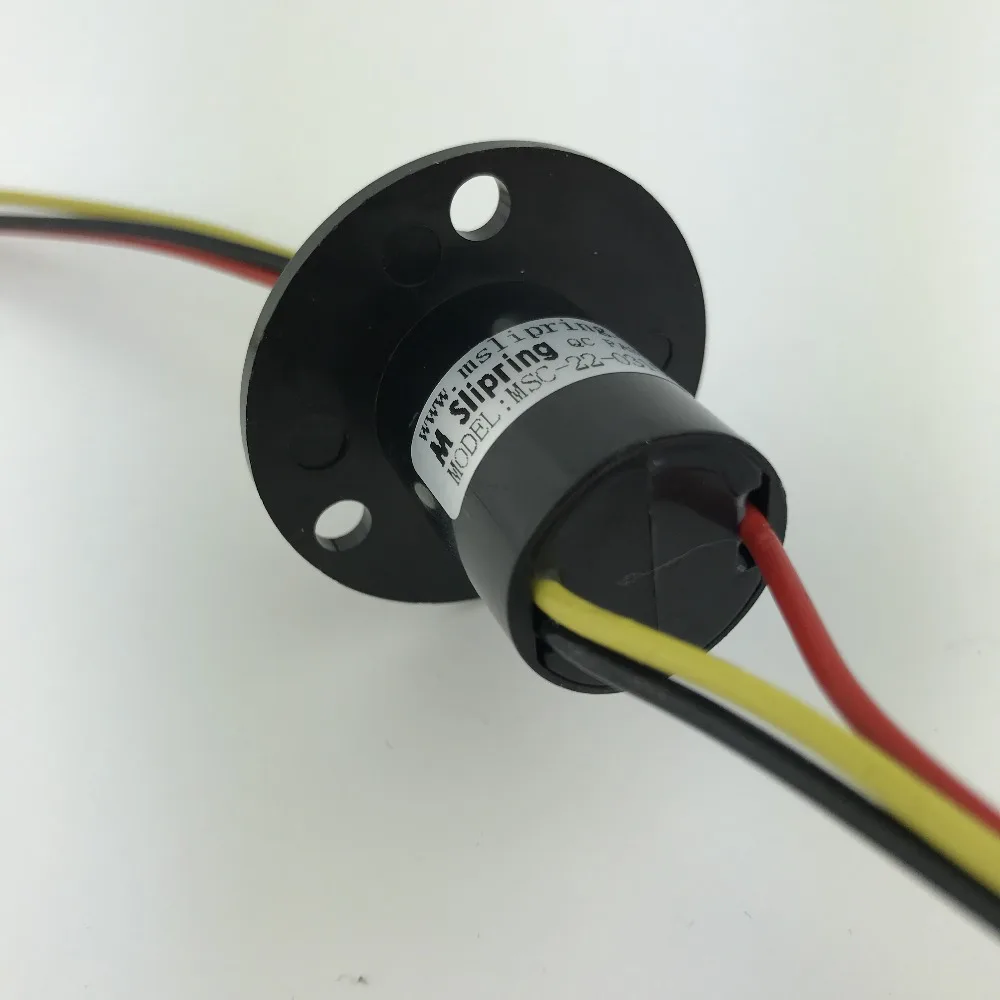

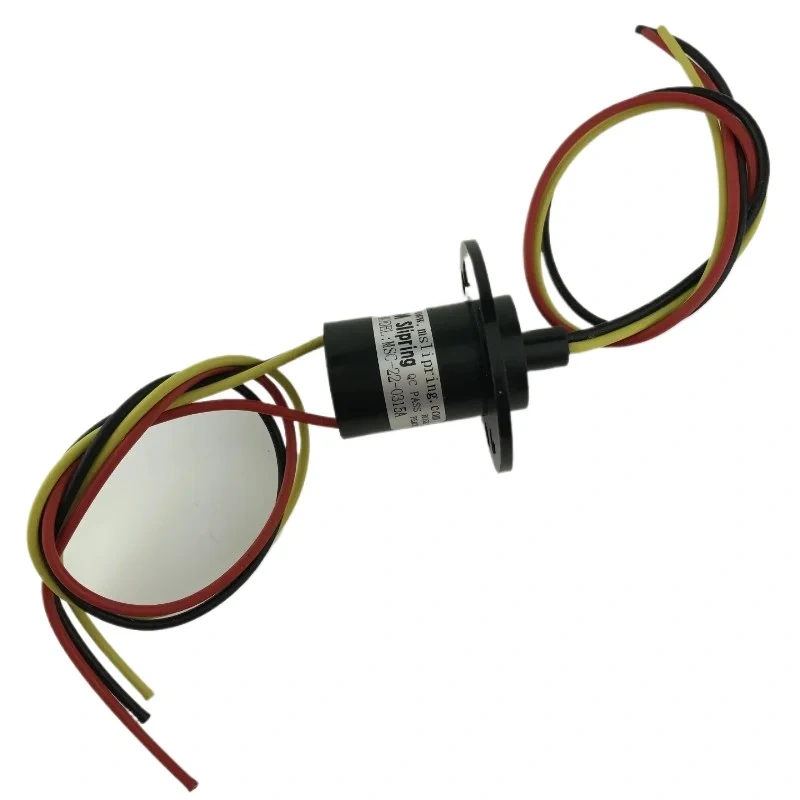

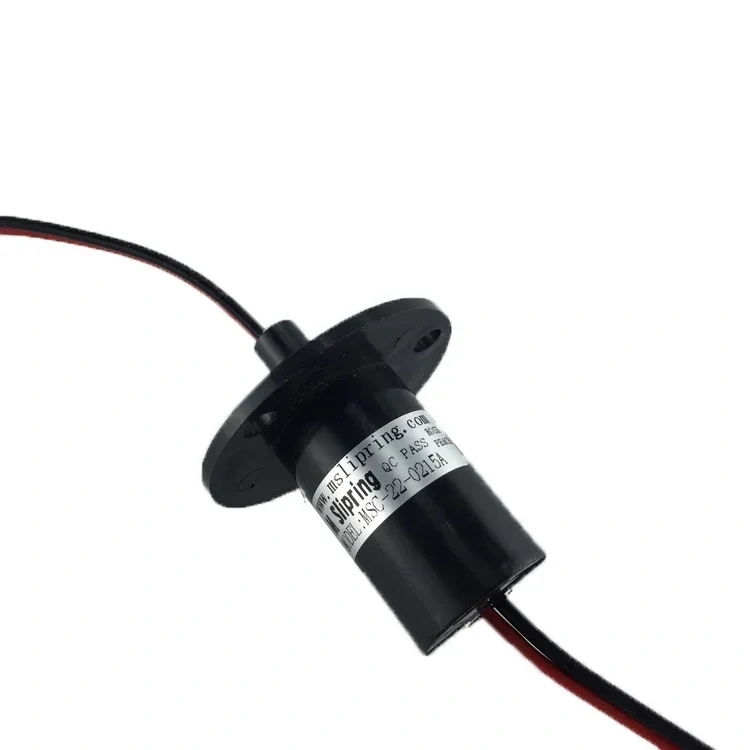

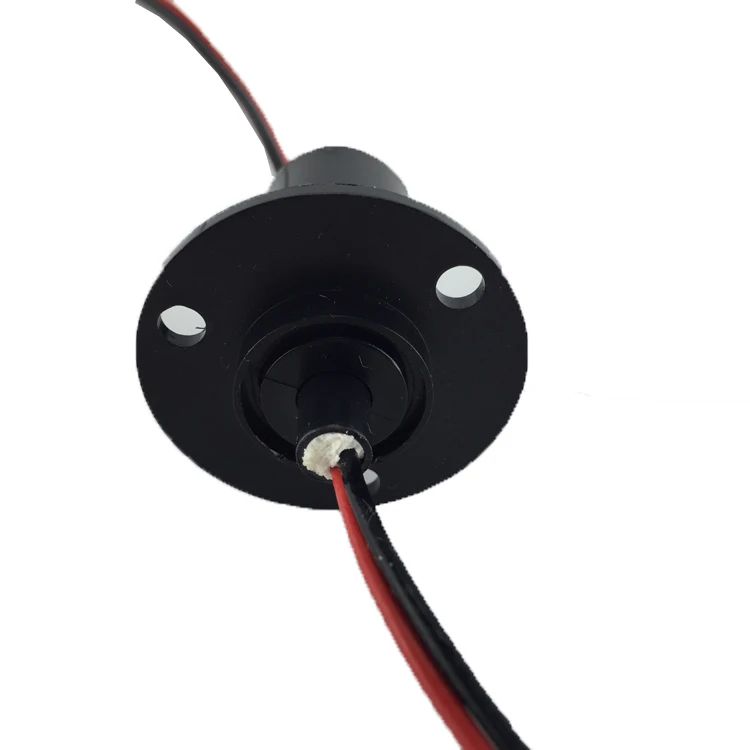

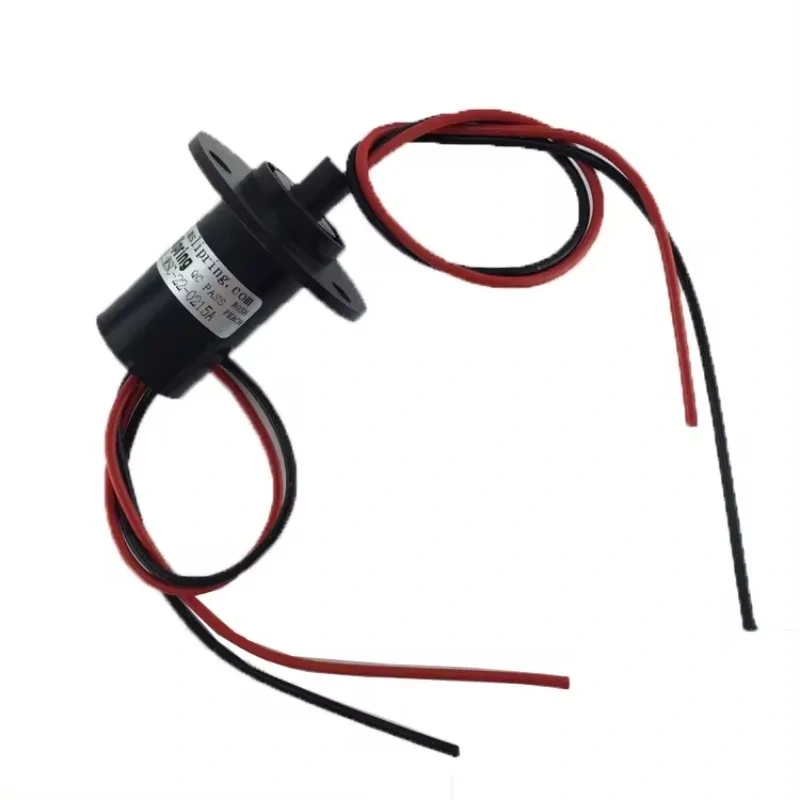

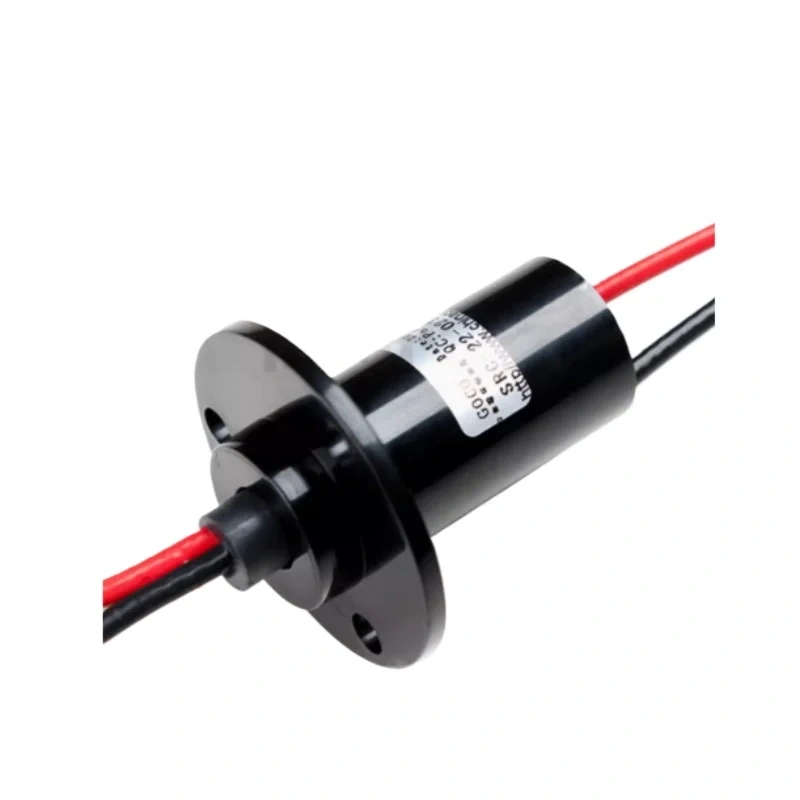

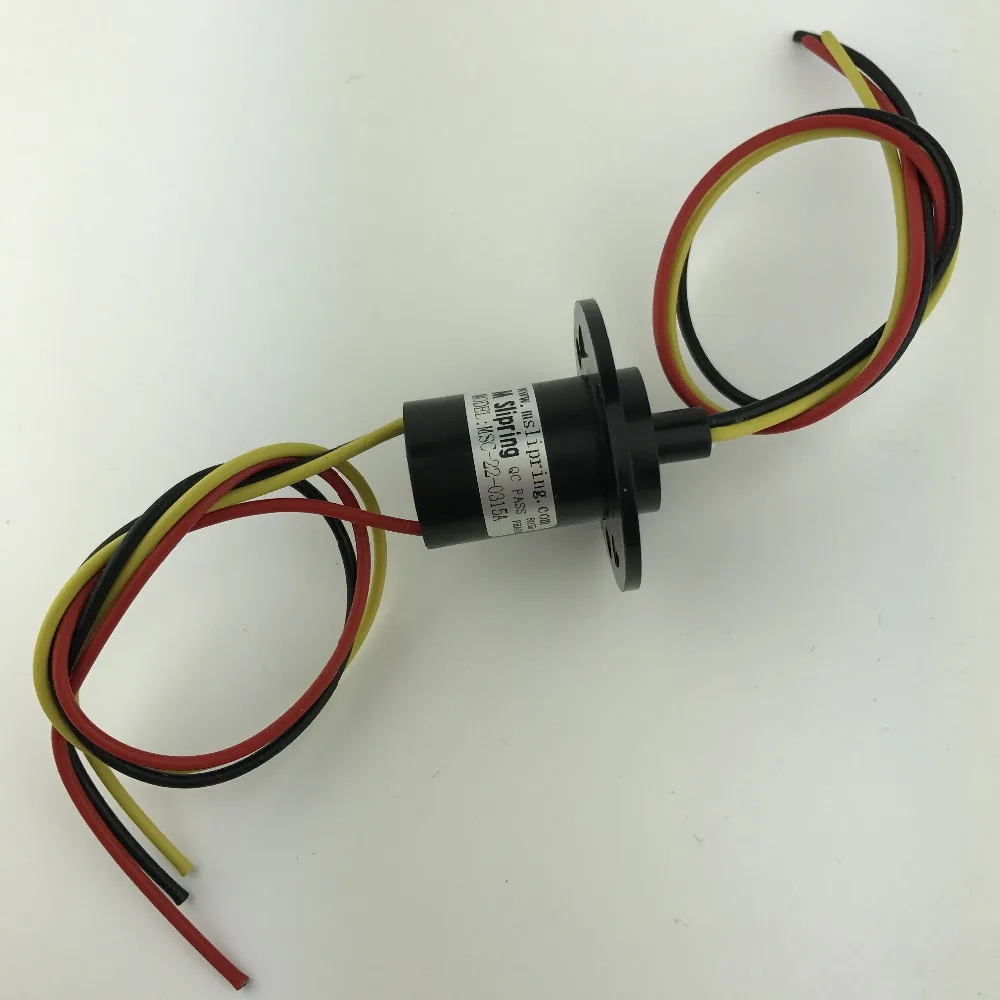

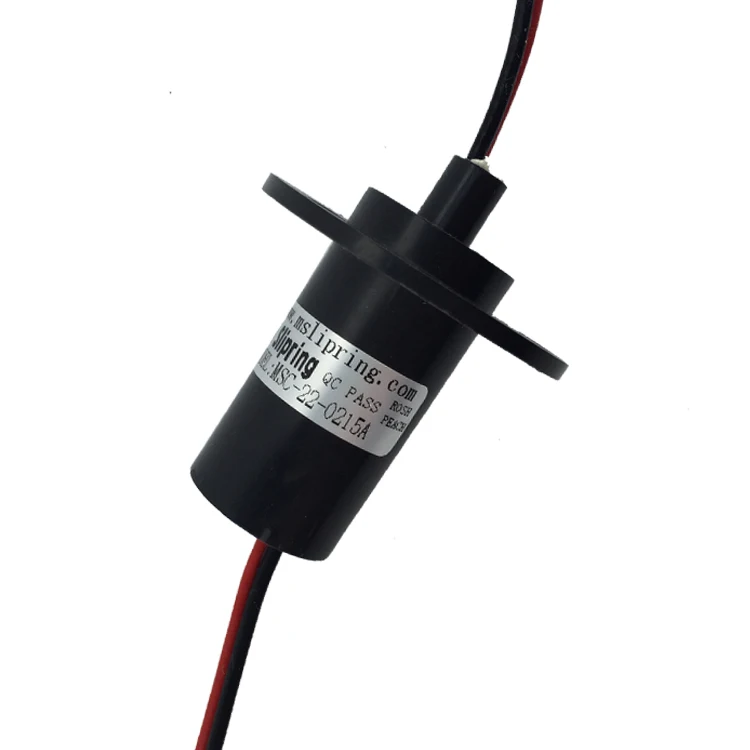

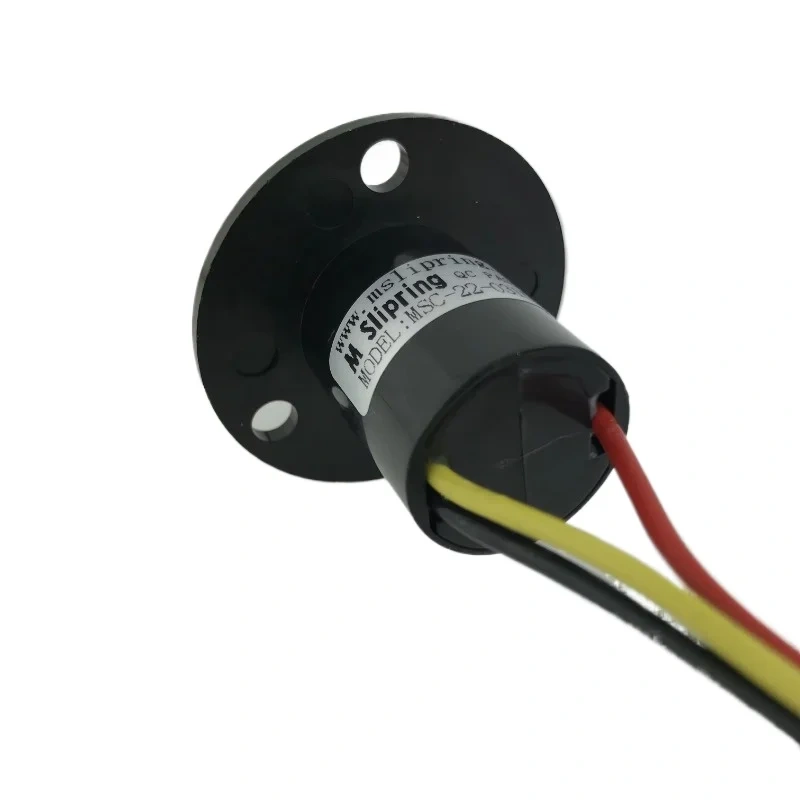

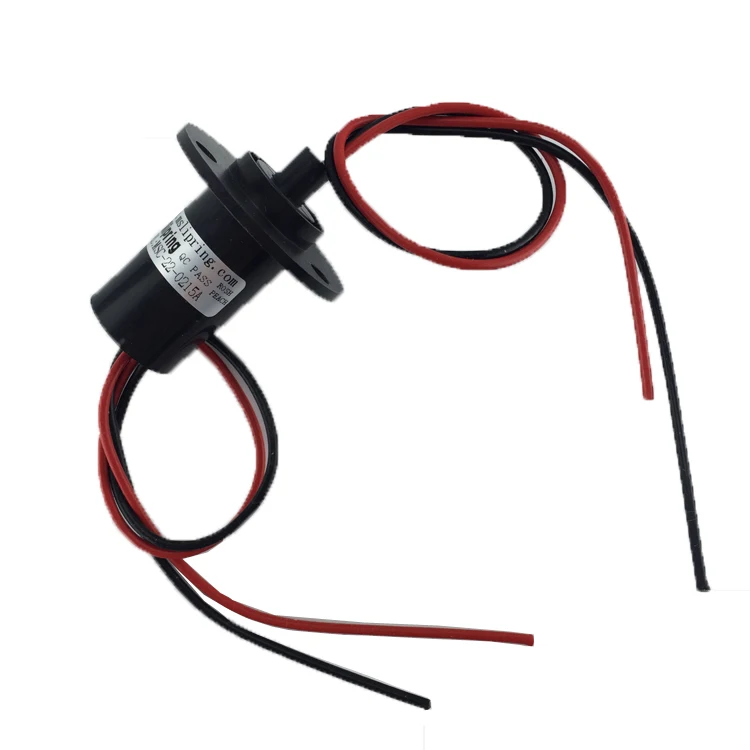

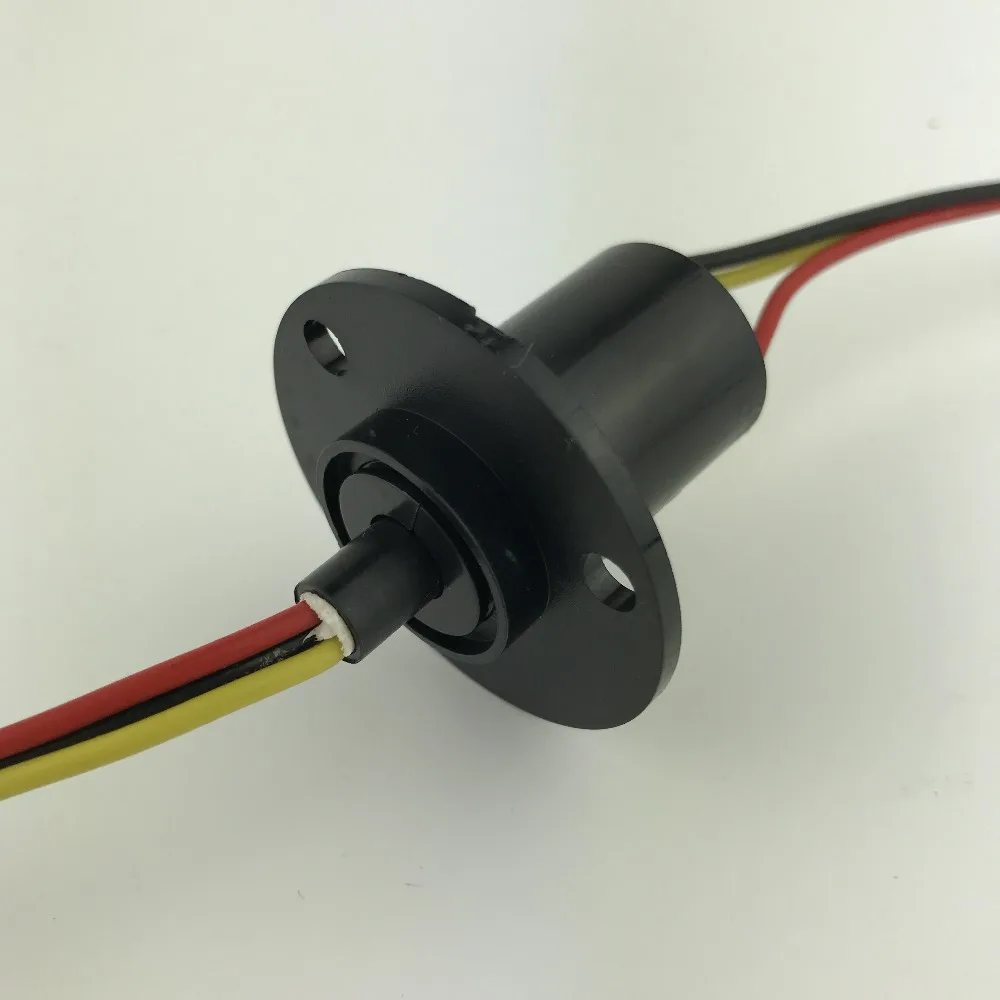

Diameter 22mm 15A 2/3/4 ChannelsRotate Dining Table Slip Ring Electric Collector Rings Slip Ring Rotary Joint

This listing is include multiple sales option, please option what you needing.

****100% Brand New, Shipping within 48 Hours****

Features:

Diameter 22mm 15A 2/3/4 ChannelsRotate Dining Table Slip Ring Electric Collector Rings slip ring rotary joint Fully meet the 360 degree of unlimited rotation of the image and data transmission work small noise, long life, small rotation torque, smooth running dynamic resistance change value is extremely low,small volume, compact structure.

Specifications:

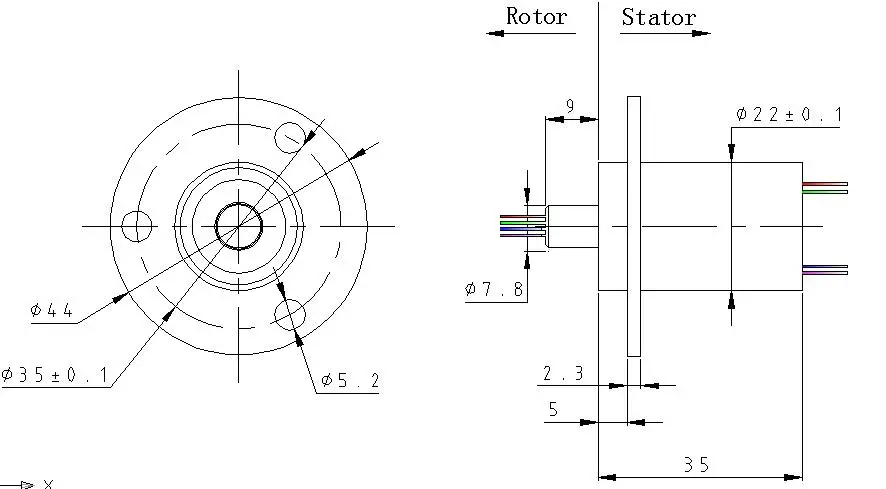

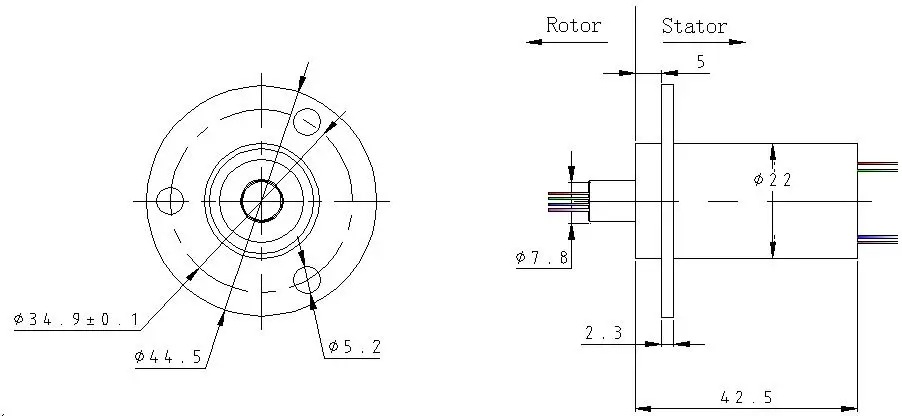

Speed:up to 250rpm Channel number: 2, 3, 4Channels for option Rated voltage:220VAC/DC Rated current: 15 A/channel Diameter: 22mm Operating temperature: -20 ℃ ~ +60 ℃ Contact material: Gold Wire Size: AWG16 Silver-plated Teflon UL Wire length: standard 200mm Compressive strength: between the two channels≥500V 50Hz Insulation resistance: 500MΩ/500VDC Dynamic resistance fluctuation value: minimum 10mΩ Shell material: Engineering plastics Working life: ≥5 million rpm(depending on the working environment and speed)

Pack Included:

1* Slip Ring Number of Channels for option, Each channel 15A, Diameter 22mm
