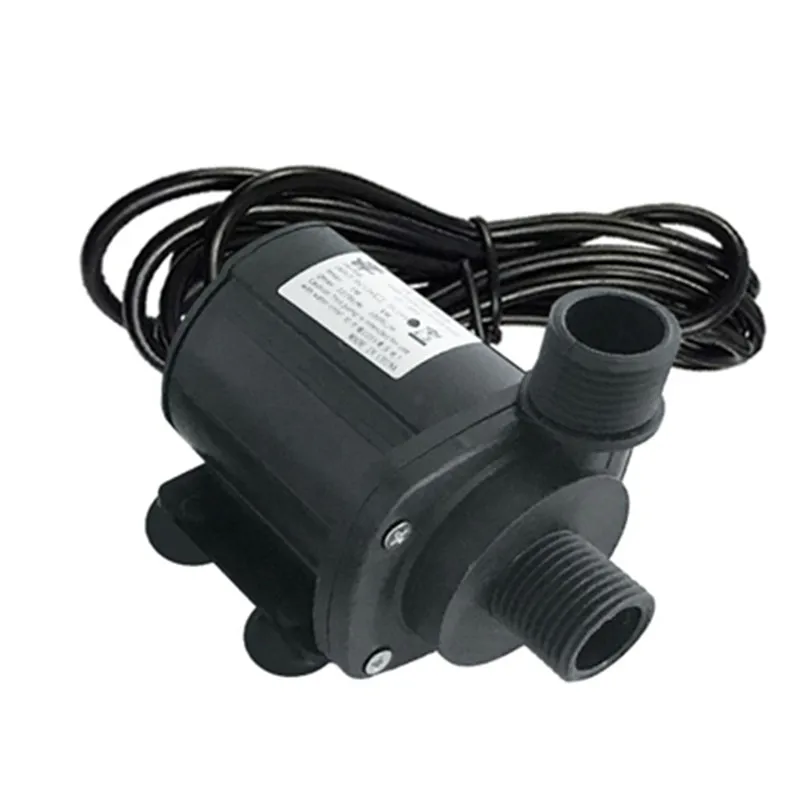

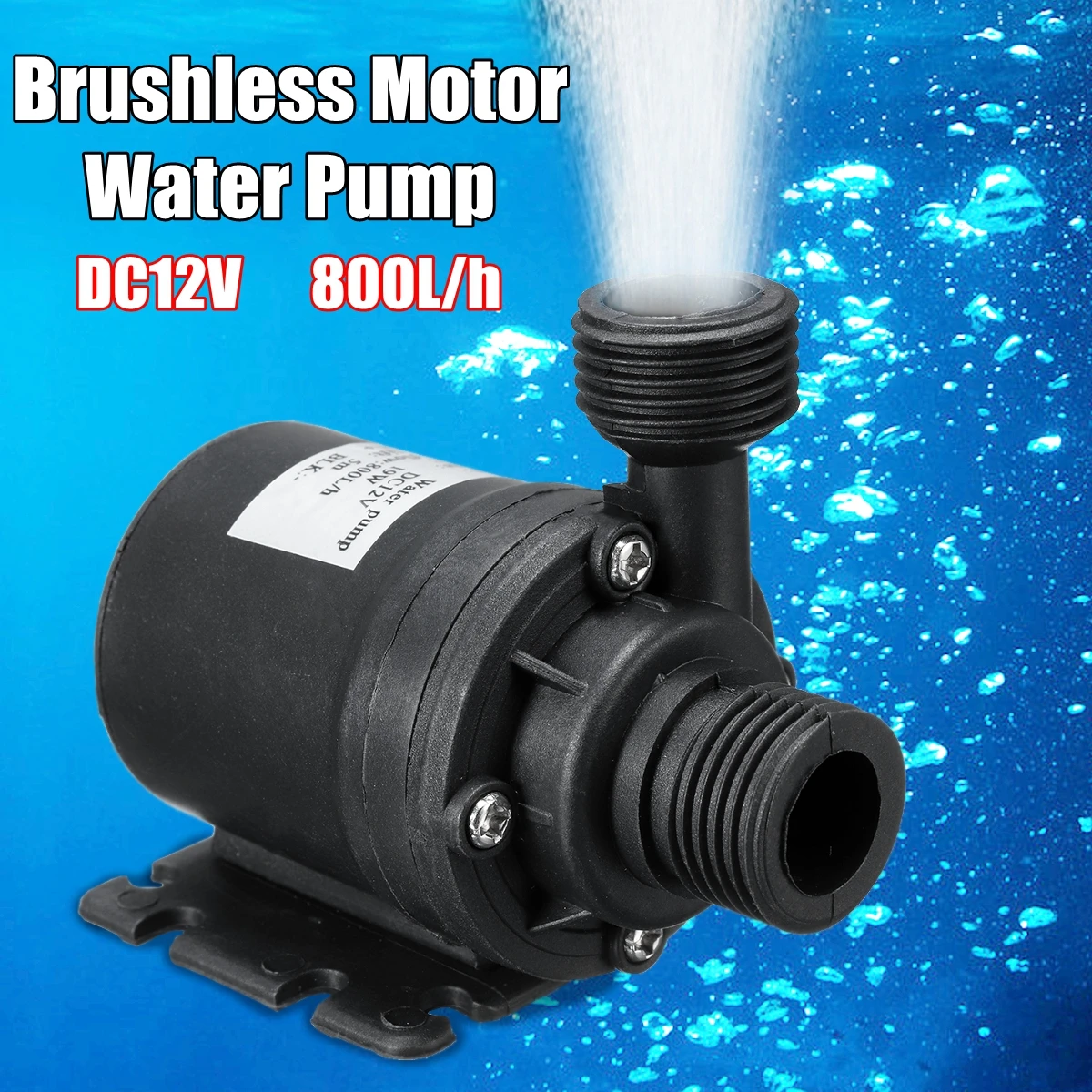

DC 12V/24V 5M 800L/H Portable Mini Brushless Motor Ultra-Quiet Submersible Water Pump for Cooling System Fountains Heater

Package include:
1 x Brushless Motor Water Pump

Specifications:
Name: Water Pump
Materials: ABS

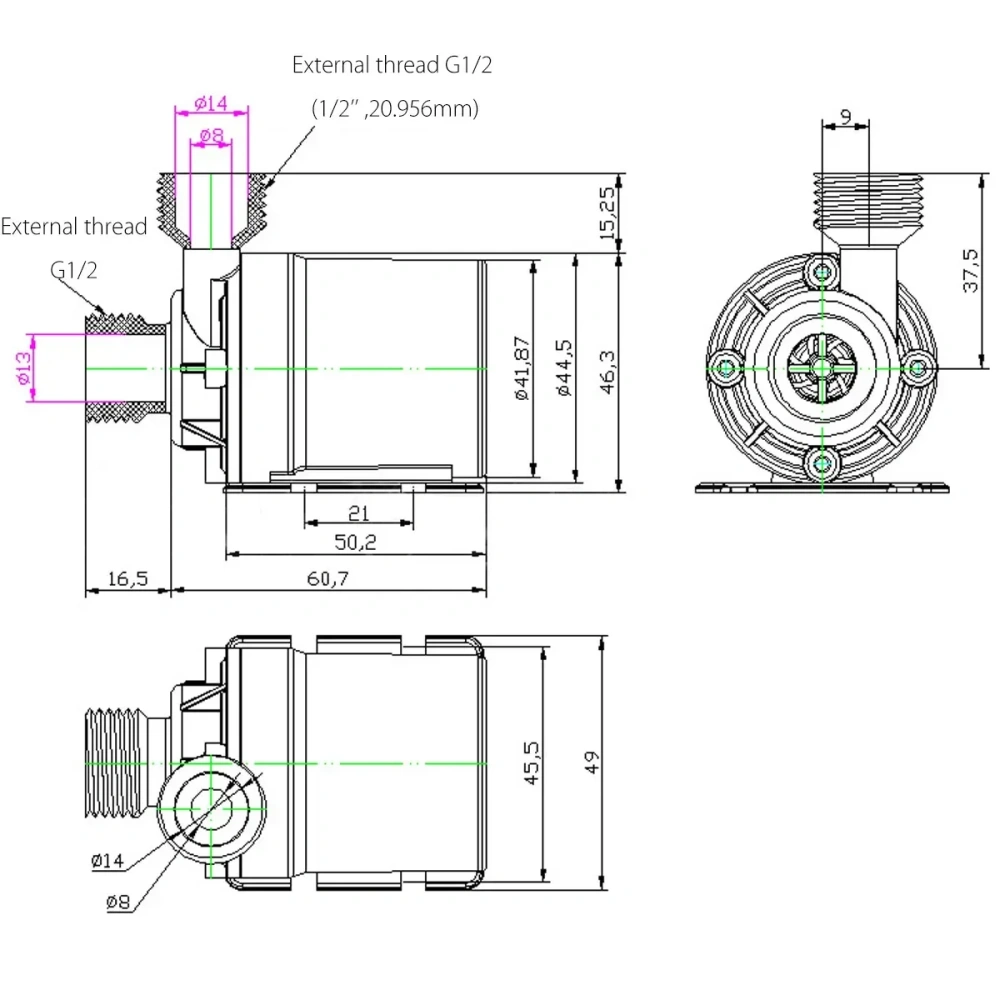

Inlet/Outlet: 4mm Threaded port
Voltage: DC12V
Power: 19W
Maximum Rated Current: 1000MA
Flow Rate: 800L/h(m3/h)
Max Water lift: 5 metre
Working environment temperature: 1-60 ℃
Max circulating water temperature: 100°C
Noise: < 40 db (water) under operation
Drive mode: electromagnetic
Conveying medium: hot water pump
Pump shaft position: horizontal
Impeller structure: open impeller
Impeller suction method: single suction type
Cable line: 50cm

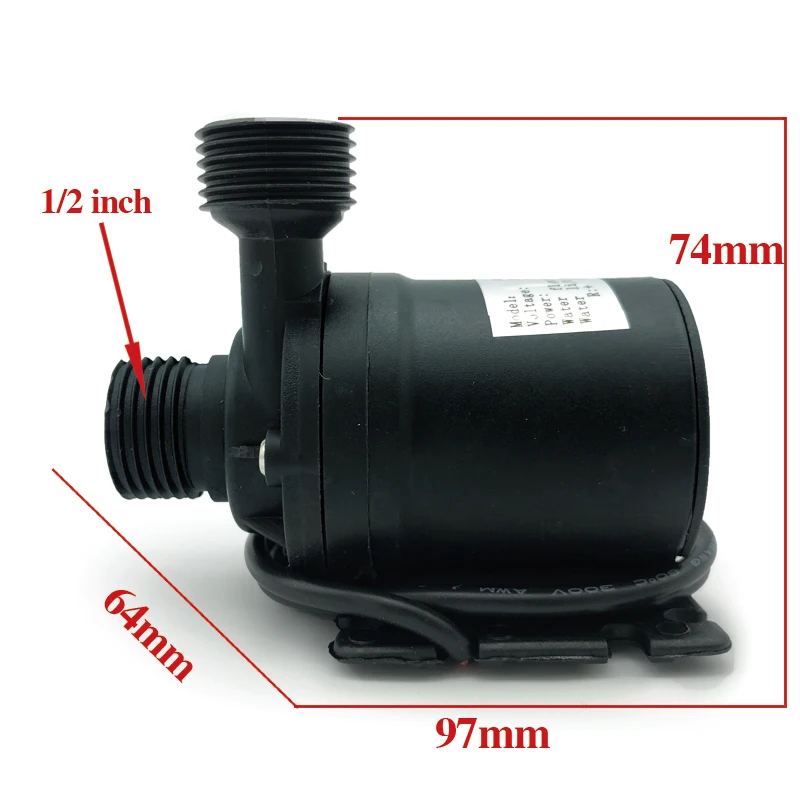

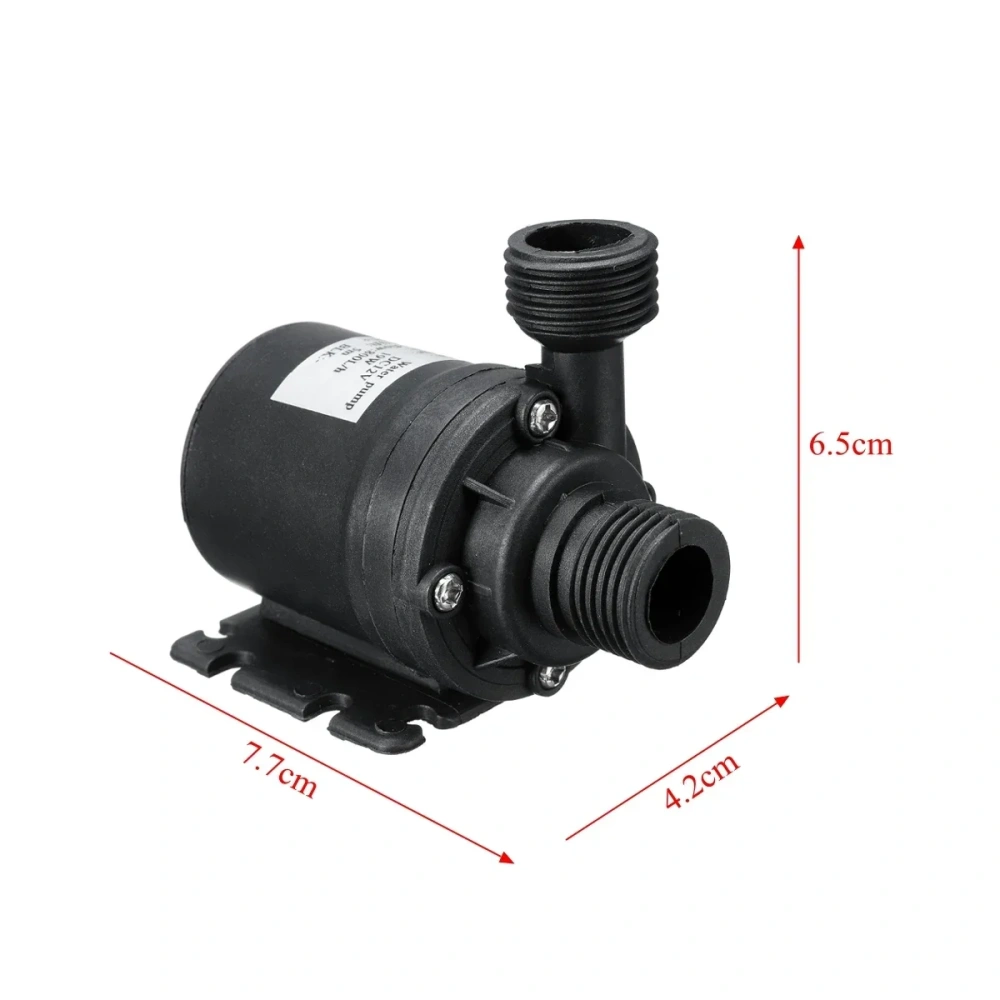

Sizes:About 7.7cm(L) x 4.2cm(W) x 6.5cm(H)

Features:
- Uses advanced electronic components and high-quality wear-resistant shaft
- Long working life, continuous power-on working time of more than 10,000 hours.
- It is smooth operation, high efficiency, good performance.
- Small volume, low noise, safety and environmental p rotection.

Usage:
The water pump cable (red line is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases.No diving without self-priming function, prohibit no water free.)

Common Troubleshooting:
1.The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning).
2Tland use when the pump does not run water. (There is air in the pump or in the pipeline.)

Note:
1.Do not take the wrong pump positive and negative.
2.Prohibit not through the power converter will be connected directly to the 220V power supply pump.
3.Is strictly prohibited for strong acidity, alkali and other damage to the pump medium.
4.The pump is suitable for medium temperature 1 ℃ -60 ℃.
