Features

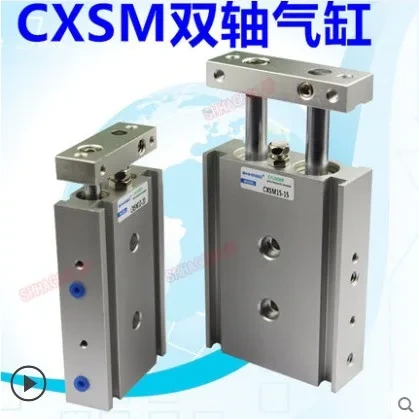

CXSM Dual Rod Cylinder SMC Style
1.CXS series compact pneumatic cylinder are very wide used in automation line,
2.Normally bore size: 6MM, 10MM, 16mm, 20mm, 25mm, 32mm.
3.With self-lub bearing, the piston rod is lubrication free.
4.Easier and various mountings.
Specifications
Bore size(mm) | 6 | 10 | 15 | 20 | 25 | 32 | |||
Action | Double acting,single rod |
| |||||||
Fluid | Filtered compressed air |
| |||||||
Proof pressure | 1.05Mpa |
| |||||||
Operating pressure range | 0.15~0.7Mpa | 0.1~0.7Mpa | 0.05~0.7Mpa |
| |||||
Ambient and fluid temperature | -10~60ºC(No freezing) |
| |||||||
Port size | M5X0.8 | Rc1/8 |
| ||||||
Cushion | Rubber bumper |
| |||||||
Stroke adjustable range | 0 to -5mm compared to the standard stroke. |
| |||||||
Bearing type | Slide bearing/ball bushiong bearing(same dimensions for both |
| |||||||
Ordering Code

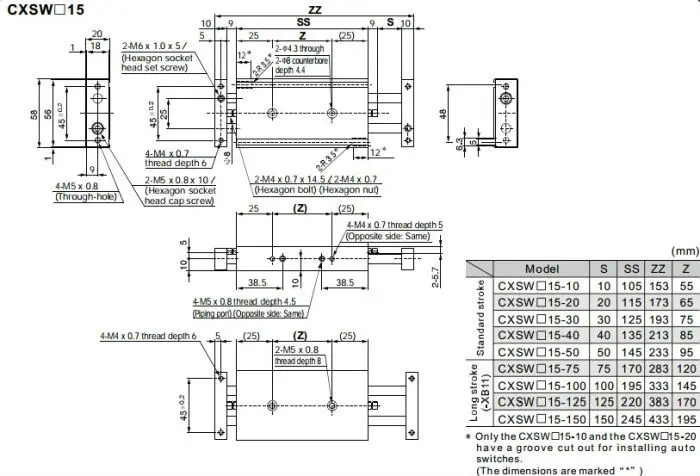

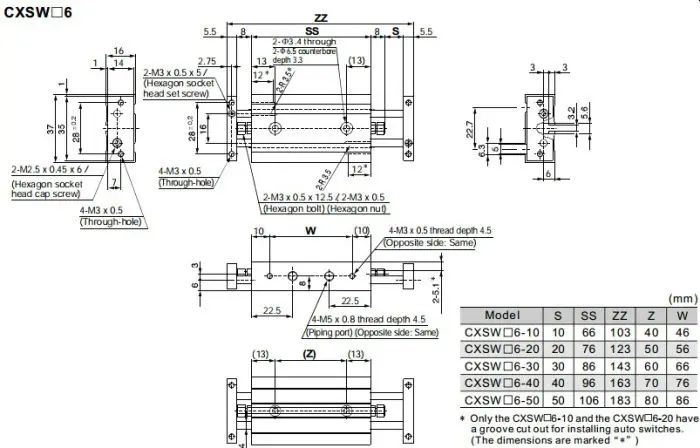

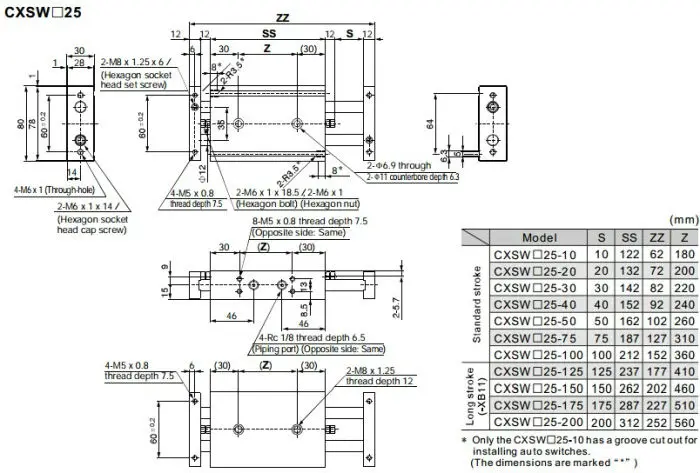

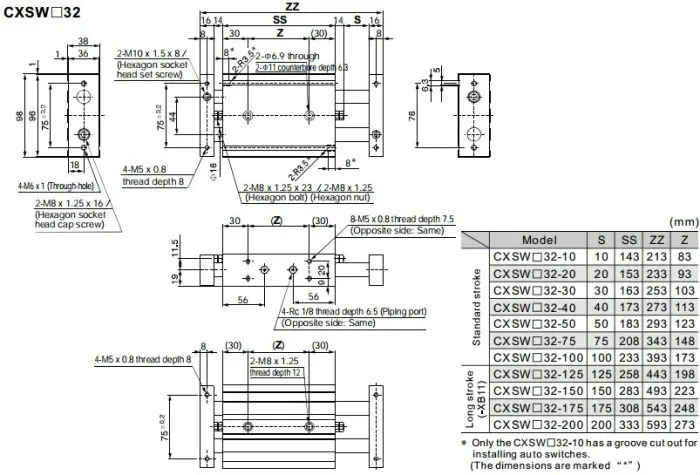

Dimensions
