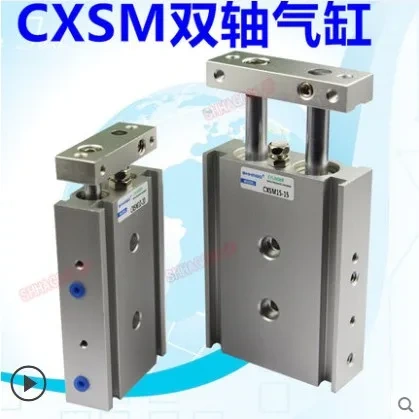

CXSM Dual Rod Cylinder SMC Style
1.CXS series compact pneumatic cylinder are very wide used in automation line,
2.Normally bore size: 6MM, 10MM, 16mm, 20mm, 25mm, 32mm.
3.With self-lub bearing, the piston rod is lubrication free.
4.Easier and various mountings.
Specifications
|
Bore size(mm) |
6 |
10 |
15 |
20 |
25 |
32 |
|||
|
Action |
Double acting,single rod |
|
|||||||
|
Fluid |
Filtered compressed air |
|
|||||||
|
Proof pressure |
1.05Mpa |
|
|||||||
|
Operating pressure range |
0.15~0.7Mpa |
0.1~0.7Mpa |
0.05~0.7Mpa |
|
|||||
|
Ambient and fluid temperature |
-10~60ºC(No freezing) |
|
|||||||
|
Port size |
M5X0.8 |
Rc1/8 |
|
||||||
|
Cushion |
Rubber bumper |
|
|||||||
|
Stroke adjustable range |
0 to -5mm compared to the standard stroke. |
|
|||||||
|
Bearing type |
Slide bearing/ball bushiong bearing(same dimensions for both |
|
|||||||
