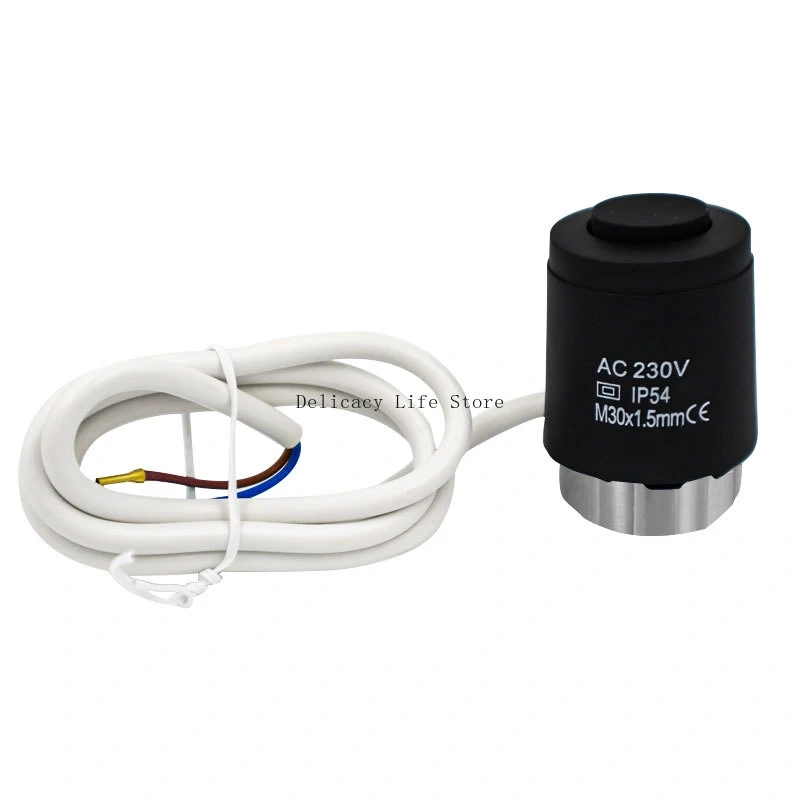

230V Electric Thermal Actuator Radiator for Manifold Underfloor Heating NC Valve N58A

230V Normally Closed Electric Thermal Actuator Radiator for Manifold Underfloor Heating NC Radiator Actuator Valve
OOTDTY

Overviews:
Electric heating actuators for branch valves, small valves, and dynamic balancing valves of the manifold are the electric drive parts of the control valves.

Features:
Paraffin propulsion element, driven by PTC heating
With spring return function, the valve is closed after power off
No noise during operation
Travel position indication
Nut connection installation method, simple, fast, easy to remove

Technical Parameters:
Voltage: 230VAC 50 / 60HZ
Stable power consumption: 3W
Thrust: 0110N
Stroke: 3.5mm
Full journey: 180s-300s

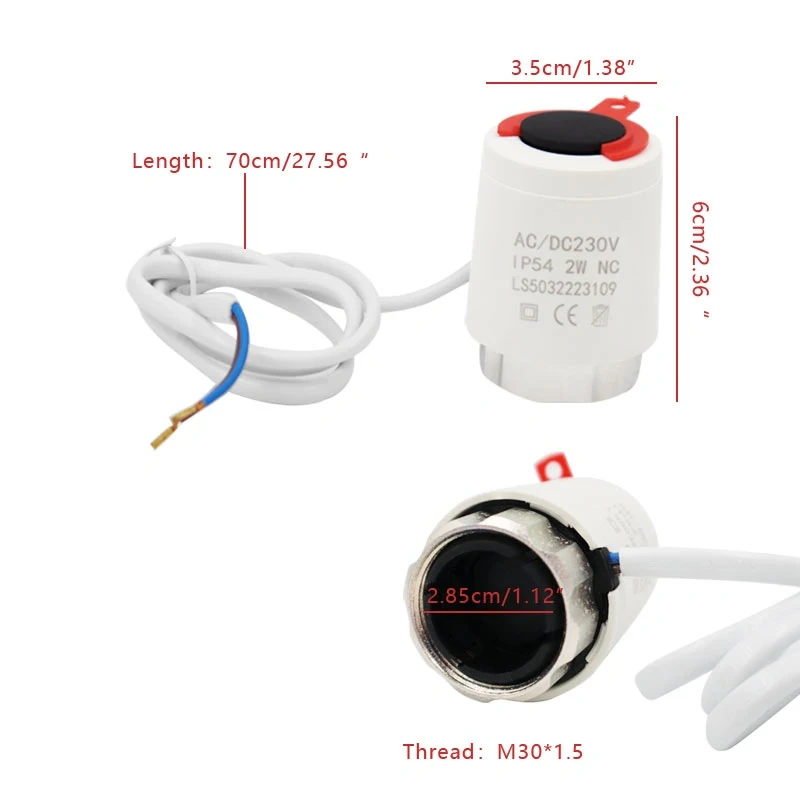

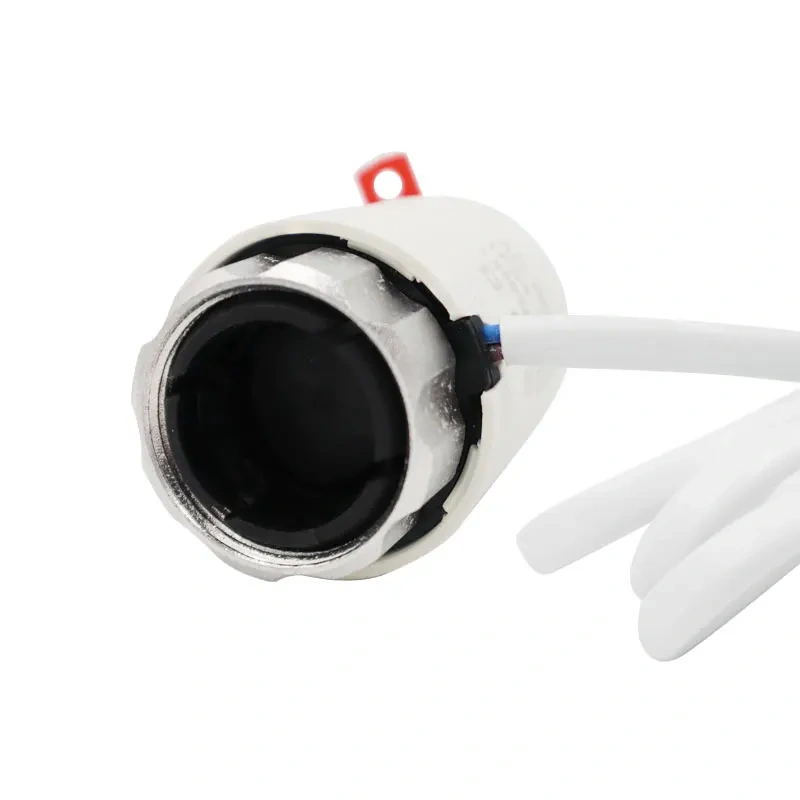

Connection size: M30 * 1.5
Ambient temperature: -5 ~ 50 ℃
Cable length: 70cm (27inch)
Shell material: PC

Package included:
1 * Electric Thermal Actuator Radiator
