  • Description
220V 50cm Width Healthy Floor Heating Infrared Underfloor Heating Carbon Film Heater
To view  the electric film clip , please click on the picture link>>>>>>

>>>Specifications:

Working voltage: 200~240V 50/60Hz
Rated power: 220W/m2
Max surface temperature: 52C degrees
Thichness: 0.338mm (the 0.25mm heating film is not suitable for underfloor heating.)
Width:  50cm


product description



Heating Using a Heating Film

The petroleum, gasm electric heaters are a convective heating type through primary heating, but the heating film is of a radiant heating method that radiates far infrared rays heated secondarily from the carbon semiconductor to be an ultra-power-saving heating system with an excellent energy efficiency, heats the object with a light and thin film to be attachable to the walls as well as the floors, and can use the space freely to be a new material of dream. This is safe, semi-etemal well-being heating system that purifies the room air, provides pleasant heating and smoothes the blood circulation by radiating a lot of far infrared rays and anions using only electricity, a clean energy, without consuming the dissolved oxygen in the room for convection and heat radiation.



Superiority of Heating Film Heating System:

Infra red heating is one of the healthiest and most modern method of heating, which uses a similar thermal properties as the sun itself. Infra red rays directly heat people, walls and objects, and then the air is heated from them. In traditional radiator heating it leads to heating and drying the air. Warm air flows up and first heats the top of the room and then low-lying objects, people and so on.

- Infra panels have an efficiency of 98%, an average energy saving is 30%
- Infra heating does not cause dust dispersion
- It creates a healthy environment, destroys bacteria
- Ensures uniform temperature in whole room
- Clean, noiseless, maintenance-free operation and space-saving
- Easy control and operation with thermostats
- Easy installation, no need to rework the floor or walls

When using infra red heating, the air temperature is usually lower by 3-4 ° C, as in a room with traditional heating it to achieve a comparable feeling of warmth. Lowering the air temperature by 1 ° C can save up to 5-6% of energy.
Heating film 111

product details

9151627070_101112411





11766422909_267655610 10267372534_267655610 11698338253_267655610
11698332401_267655610
product installation

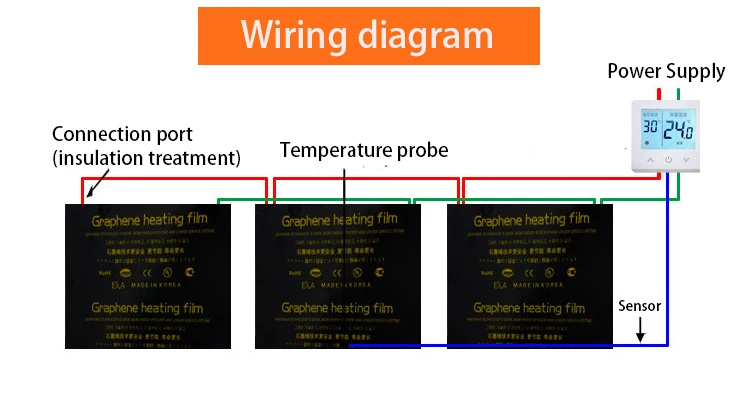

Wiring the heating film, two wiring plans:
1. Heating film
2. Power to the heating film
3. Floor temperature sensor
4. Thermostat
5. Power of whole installation

11698314796_267655610

14918484034_1025836228






>>> Reminder:
1. When installing, do not overlap each film. Always keep 1~3cm distance between films. and keeps 10~20cm distance between the way and films.
2. Maximum film length for one row.
    50cm model: 12~13m; 80cm model: 7~8m; 100cm model: 5~6m.

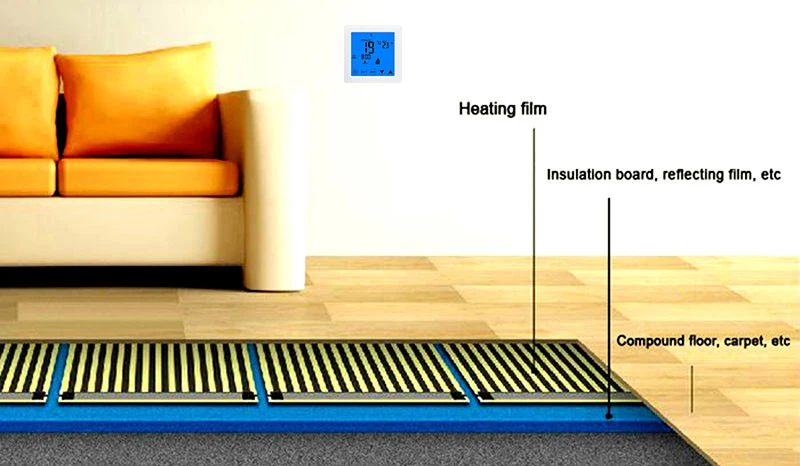

carbon heating film application
