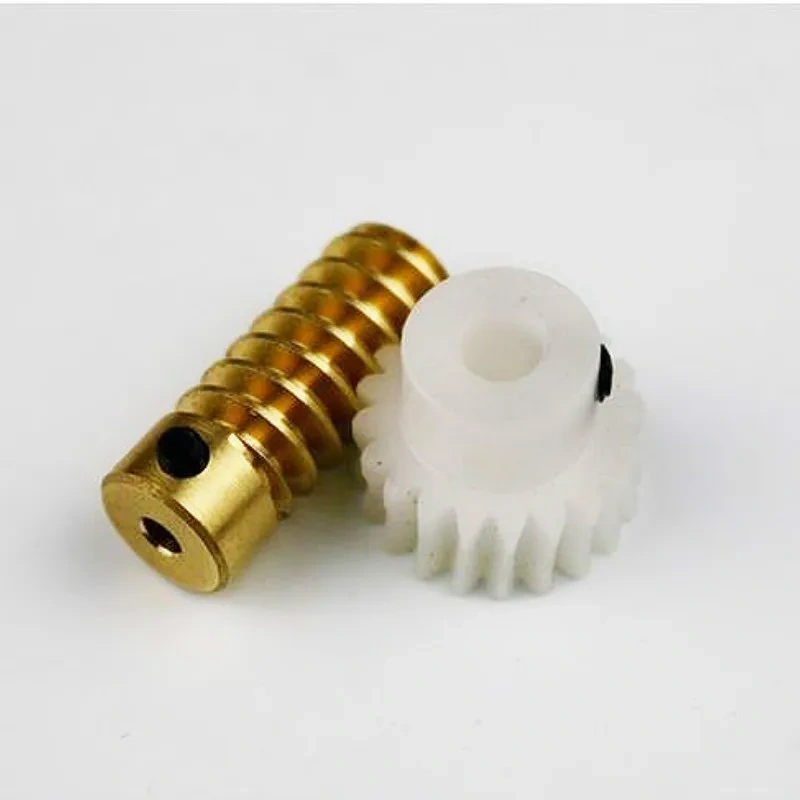

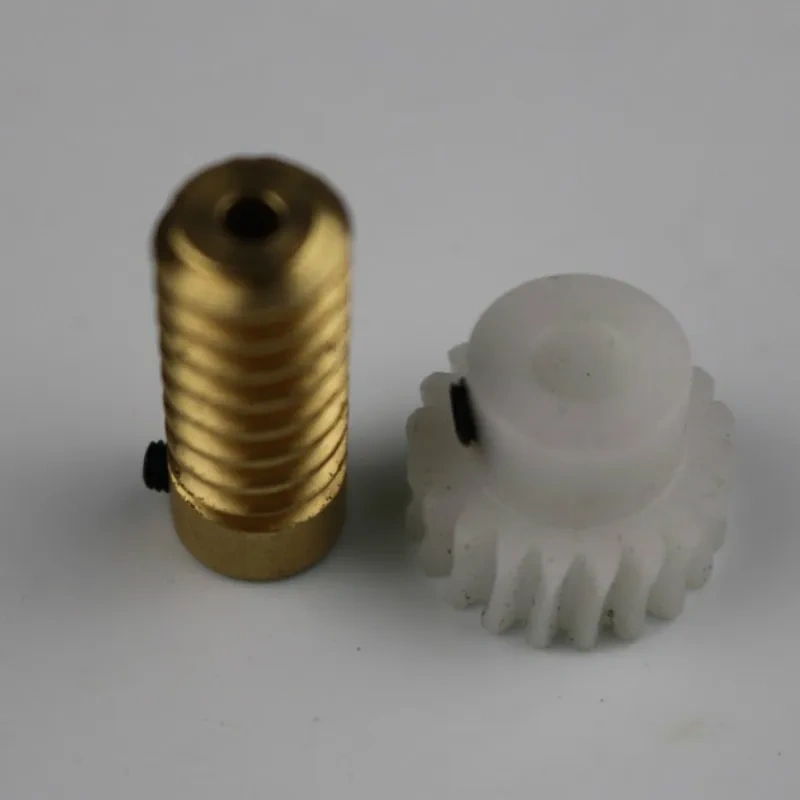

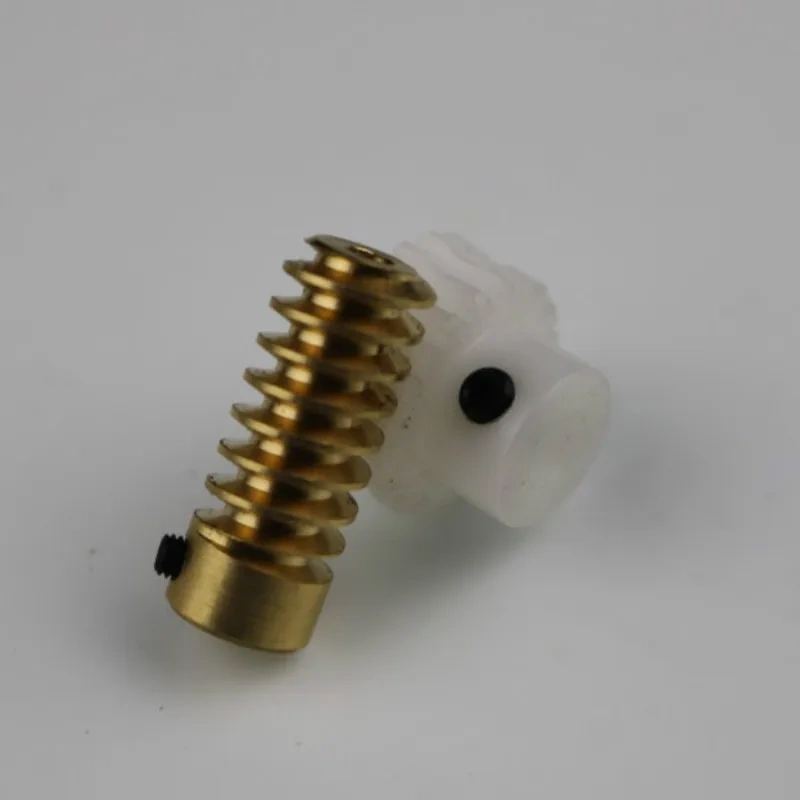

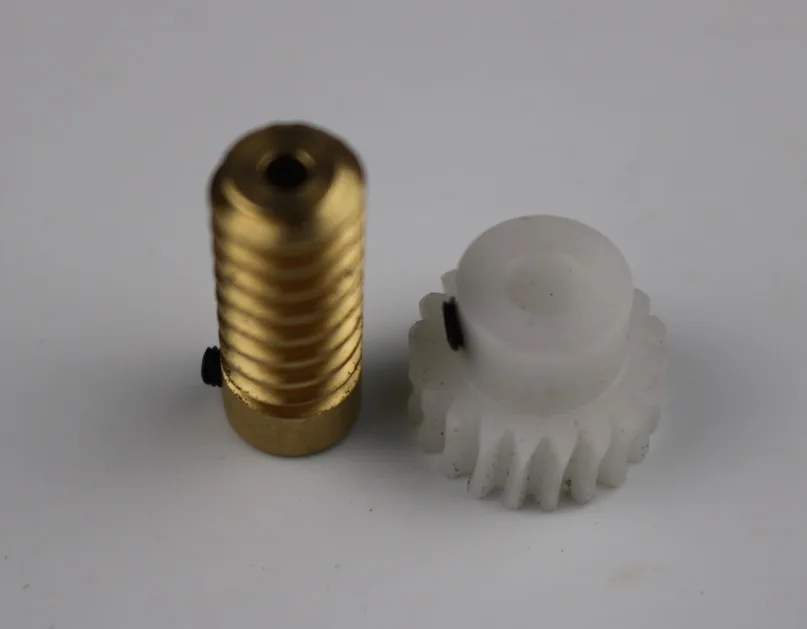

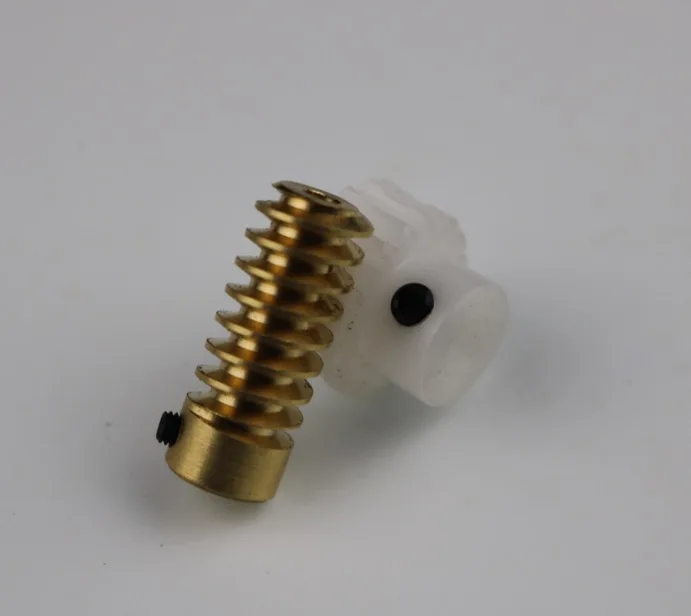

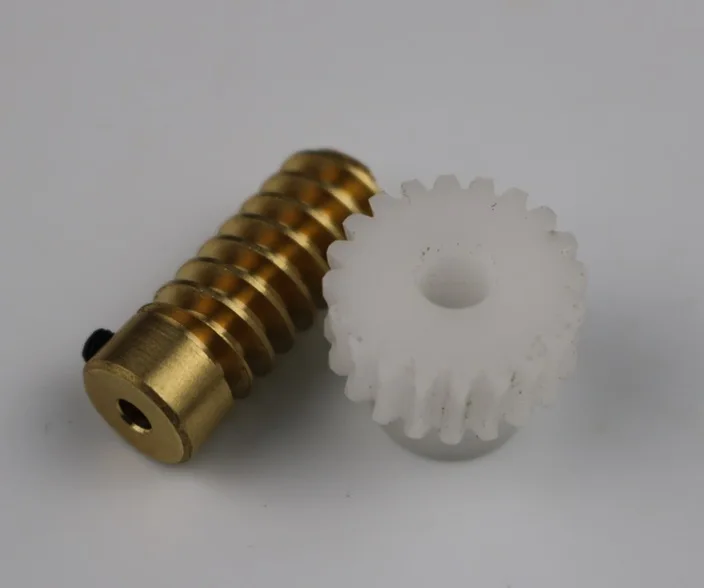

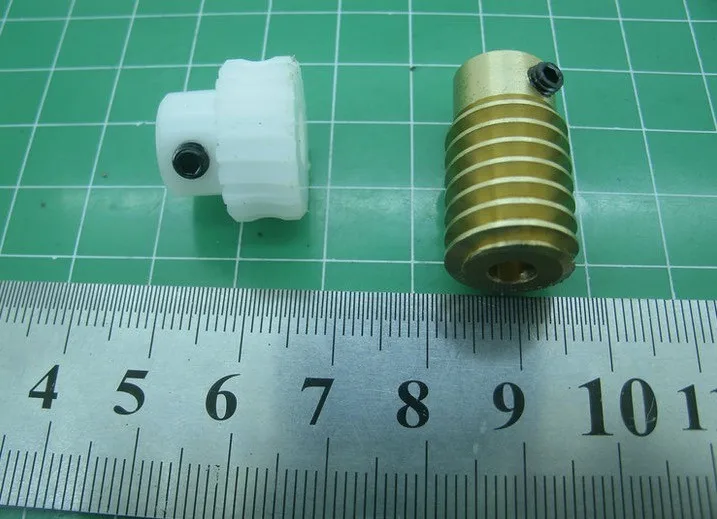

copper Worm rod
0.8 M
Total length 26mm , top wire
The outer diameter 10mm, inner holes 3mm/ 4mm
The outer diameter 12mm, inner hole 5mm/ 6mm
The Outer diameter 14mm, inner hole 5mm/ 6 mm
Nylon worm gear
0.8M
20T
Inner holes 3mm/ 4mm
Outer diameter of 17 MM
Total height 15MM
tooth thickness 8MM
steps outside diameter 16 height 7
Covered wire
Nylon worm gear
0.8M
30T
Inner holes 5mm/ 6mm
Outer diameter of 25.6 MM
Total height 15MM
tooth thickness 8MM
steps outside diameter 16 height 7
Covered wire
Nylon worm gear
0.8M
40T
Inner hole 5MM/6MM
Outer diameter of 34.5 MM
Total height 15MM
tooth thickness 8MM
steps outside diameter 16 height 7
top wire
